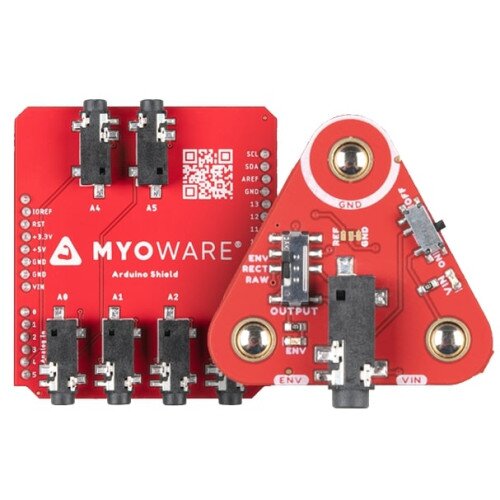

Discover Advancer Technologies Myoware 2.0 Link & Arduino Shields

Plug and play solderless link to Arduino boards

Exclusive to MYOWARE 2.0, the new MYOWARE 2.0 Arduino Shield can connect up to six MYOWARE 2.0 Link Shields providing power for the MYOWARE 2.0 Muscle Sensor and linking the myoelectric output back to the Arduino.

Link up to six MYOWARE 2.0 Muscle Sensors to single Arduino

The MYOWARE 2.0 Link Shield snaps directly to a MYOWARE 2.0 Muscle Sensor connecting to all three myoelectric output pins as well as the power pins.

The MYOWARE 2.0 Link Shield’s output is selectable using the onboard 3 position switch (default: EMG envelope). Using a TRS-to-TRS cable, a MYOWARE 2.0 Link Shield connects to one of the six ports on a myoware Arduino shield.

The MYOWARE 2.0 Arduino Shield port provides power (default: 5V) to the MYOWARE 2.0 Link Shield and sends the MYOWARE 2.0 Link Shield output to one of the Arduino analog ports.

Get the MYOWARE 2.0 Link & Arduino Shield

We’ve partnered with the electronics gurus at SparkFun Electronics to manufacture and handle the sale of the entire MYOWARE 2.0 Ecosystem.

Designed by our myoelectric experts, built by SparkFun.

In the Box

• Advancer Technologies Myoware 2.0 Link & Arduino Shields
