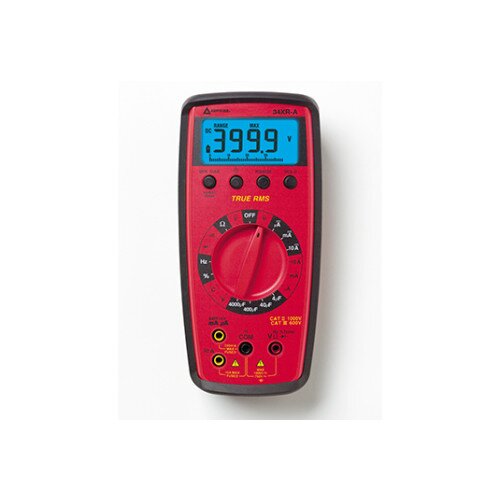

Amprobe 34XR-A TRMS Digital Multimeter with Temperature
Amprobe 34XR-A TRMS Digital Multimeter with Temperature Display Gallery Item 1

Discover Amprobe 34XR-A TRMS Digital Multimeter with Temperature

By: Amprobe

Model: 2727795

Sku: OX9ZFWCQLO

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Autoranging; display: 3-3/4 digit LCD, 3999 counts with 41-segment analog bar graph
  • Display update rate: 2/sec, nominal
  • Operating temperature: 0 °C to 45 °C at < 70 % R.H
  • True-rms digital multimeter with temperature and backlight
  • Overrange indication
  • Auto power off to save battery life
  • Min/max, data hold and range lock
  • Separate door for easy battery and fuse access
  • Magne-Grip Holster with magnetic hanging strap
  • DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
  • AC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
  • DC Current: 400.0 µA, 4.000 mA, 40.00 mA, 300.0 mA, 10 A
  • AC Current: 400.0 µA, 4.000 mA, 40.00 mA, 300.0 mA, 10 A
  • Resistance: 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO. 40.00 MO
  • Capacitance: 4.000 µF, 40.00 µF, 400.0 µF, 4000 µF
  • Frequency: 4.000 kHz, 40.00 kHz, 400.0 kHz, 1 MHz
  • Temperature: 1832 °F (1000 °C)
  • Duty cycle: 0.0 % → 90.0 %
  • DC Voltage accuracy: All ranges: ± (0.5 % rdg + 1 dgt)
  • DC Voltage resolution: 100 µV
  • AC Voltage (45 Hz to 2 kHz) True-rms ranges: 400 mV, 4 V, 40 V, 400 V, 750 V
  • AC Voltage (45 Hz to 2 kHz) True-rms accuracy: 400 mV range, 45 to 100 Hz: ± (1.2 % rdg + 8 dgts), 750 V range: 45 to 1 kHz: ± (2.0 % rdg + 8 dgts), All other ranges, 45 to 500 Hz: ± (1.2 % rdg + 8 dgts), All other ranges, 500 to 2 kHz: ± (2.0 % rdg + 8 dgts)
  • AC Voltage (45 Hz to 2 kHz) True-rms resolution: 100 µV
  • DC Current ranges: 400 µA, 4 mA, 40 mA, 300 mA, 10 A
  • DC Current accuracy: 400 µA to 300 mA ranges: ± (1.0 % rdg + 1 dgt), 10 A range: ± (2.0 % rdg + 3 dgts)
  • DC Current resolution: 0.1 µA
  • AC Current (45 Hz to 1 kHz) True-rms ranges: 400 µA, 4 mA, 40 mA, 300 mA, 10 A
  • AC Current (45 Hz to 1 kHz) True-rms accuracy: 400 µA to 300 mA ranges: ± (1.5 % rdg + 8 dgts), 10 A range: ± (2.5 % rdg + 10 dgts)
  • AC Current (45 Hz to 1 kHz) True-rms resolution: 0.1 µA
  • Resistance ranges: 400 mO 4 kmO 40 kmO 400 kmO 4 MmO 40 MmO
  • Resistance accuracy: 400, 4 k, 40 k, 400 k, 4 MmO ranges: ± (1.0 % rdg + 4 dgts), 40 MmO range: ± (2.0 % rdg + 5 dgts)
  • Resistance resolution: 100 mmO
  • Continuity audible indication: < 35 mO
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Amprobe 34XR-A Digital Multimeter, a True-rms digital multimeter with temperature and backlight for contractors and field service technicians.

In the Box

  • Amprobe 34XR-A TRMS Digital Multimeter with Temperature
  • Test Leads With Threaded Alligator Clips
  • 9 V Battery (Installed)
  • Magne-Grip Holster With Magnetic Hanging Strap
  • Temperature Adapter
  • Type K Thermocouple Probe
  • Spare Fuse
