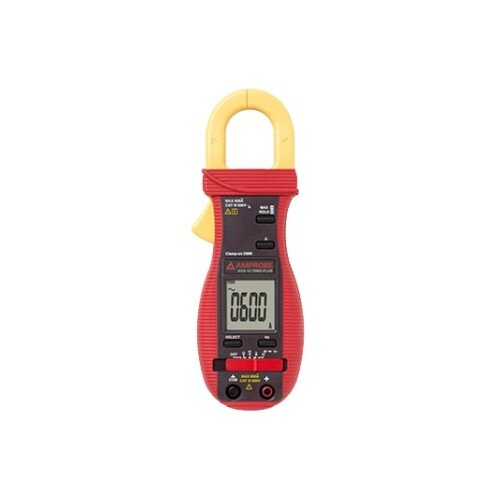

Amprobe ACD-10 TRMS-PLUS 600 A Clamp Multimeter
Amprobe ACD-10 TRMS-PLUS 600 A Clamp Multimeter Display Gallery Item 1
Amprobe ACD-10 TRMS-PLUS 600 A Clamp Multimeter - 2 Display Gallery Item 2
Amprobe ACD-10 TRMS-PLUS 600 A Clamp Multimeter - 3 Display Gallery Item 3

Amprobe ACD-10 TRMS-PLUS 600 A Clamp Multimeter - Shop Now and Save!

By: Amprobe

Model: 3037813

Sku: FTB3ND4WHQ

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Display: 3-3/4 digits 4000 counts LCD display
  • Update rate: 3 per second nominal
  • Polarity: Automatic
  • Operating temperature: 0 °C to 40 °C; < 80% RH for temperature up to 31 °C decreasing linearly to 50% RH at 40 °C
  • Altitude: Operating below 2000 m; Indoor use
  • Storage temperature: -20 °C to 60 °C, < 80% RH (with battery removed)
  • Temperature coefficient: nominal 0.15 x (specified accuracy)/°C @ (0 °C ~ 18 °C or 28 °C ~ 40 °C)
  • Low battery: Below approx. 2.4 V
  • Power supply: 3 V coin battery IEC-CR2032
  • Power consumption: 2.8 mA typical except that 3.3 mA typical for ACA function
  • APO timing: Idle for 30 minutes
  • APO consumption: 5 µA typical
  • Jaw opening conductor diameter: max 1.02″ (26 mm)
  • Special features: 30 ms Max Hold; Data Hold; Relative Zero mode
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Amprobe ACD-10 TRMS-PLUS clamp meter takes AC/DC measurement with TRMS accuracy and offers capacitance and frequency. It also offers thinner jaws over standard clamp meters allowing access to tight areas and still accommodates conductors up to 1.0″ (25 mm).

  • AC/DC Voltage to 600 V
  • AC Current to 600 A
  • Thin jaws, only 0.4″ (10 mm) thick
  • Resistance to 40 MΩ
  • Continuity buzzer
  • Capacitance to 3000 uF
  • Frequency measurement
  • In rush current
  • Hold maximum reading functions
  • Accommodates conductors up to 1.02″ (26 mm) in diameter
  • Auto ranging
  • Auto power off
  • Rubber over-molded case
  • Overload protected
  • True-rms measurement

In the Box

  • Amprobe ACD-10 TRMS-PLUS 600 A Clamp Multimeter
  • Test leads
  • Battery (installed)
  • Soft carrying pouch
