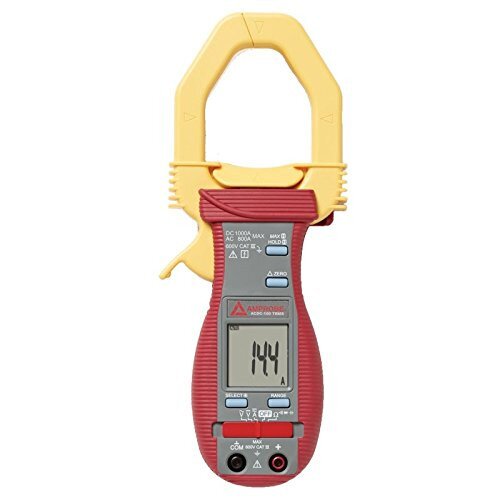

Amprobe ACDC-100 1000 A AC/DC Clamp Meter
Amprobe ACDC-100 1000 A AC/DC Clamp Meter Display Gallery Item 1
Amprobe ACDC-100 1000 A AC/DC Clamp Meter - 2 Display Gallery Item 2

Amprobe ACDC-100 1000 A AC/DC Clamp Meter - Shop Now and Save!

By: Amprobe

Model: 2740452

Sku: WSDN2NIE17

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Large, easy to read LCD display
  • Auto and manual ranging
  • Relative zero mode
  • Auto power off
  • Data hold
  • MAX capture function for inrush current measurements (30 mS response)
  • Diode test
  • Audible continuity
  • Accommodates conductors up to 2.0″ (50 mm) in diameter
  • “Third hand” – test probe holder
  • Rubber over-molded case with built-in probes storage
  • AC Current: 400.0 A, 800 A
  • DC Current: 400.0 A, 1000 A
  • Voltage AC/DC: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
  • Resistance: 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
  • Capacitance: 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
  • Accommodates conductors: up to 2.0 (50 mm) in diameter
  • True-rms: N/A
  • DC Current: 400.0 / 1000 A Accuracy: +/-(1.5% Rdg + 4 LSD) @ 0 to 800 A
  • AC Current: 400.0 / 800 A Accuracy: +/-(1.5% Rdg + 5 LSD) @ 0 to 600 A, 40 to 100 Hz
  • AC Voltage: 400.0 mV 4.000 / 40.00 / 400.0 / 600 V Accuracy: +/-(1.5% Rdg + 4 LSD) @ 4 V to 400V ranges , 50 to 500 Hz
  • DC Voltage: 400.0 mV 4.000 / 40.00 / 400.0 / 600 V Accuracy: +/-(0.5% Rdg + 3 LSD) @ 4 V to 400 V ranges
  • Resistance: 400.0 Ohms 4.000 / 40.00 / 400.0 kOhms 4.000 / 40.00 MOhms Accuracy: +/-(0.6% Rdg + 4 LSD) @ 4 to 400 kOhms ranges
  • Capacitance: 500.0 nF / 5.000 / 50.00 / 500.0 / 3000 uF Accuracy: +/-(3.5% Rdg + 6 LSD)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Where accuracy, quality and technology meet. The ACDC-100 offers superior AC/DC measurement capabilities, highest product quality and enhanced ergonomics with red, rubber, Ribs design.

In the Box

  • Amprobe ACDC-100 1000 A AC/DC Clamp Meter
  • Deluxe Carrying Case
  • Test Leads
  • Batteries (Installed)
