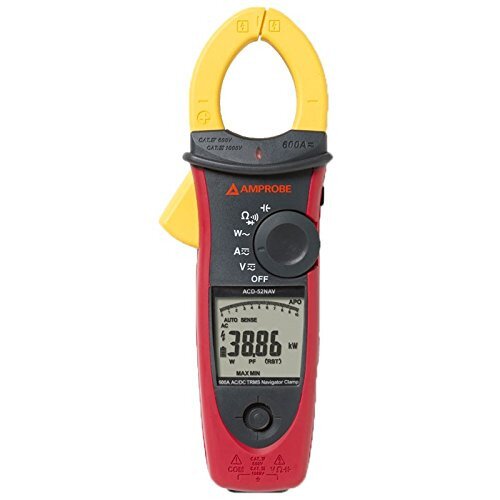

Amprobe ACDC-52NAV AC/DC CAT IV 600 A TRMS Navigator Clamp Meter
Amprobe ACDC-52NAV AC/DC CAT IV 600 A TRMS Navigator Clamp Meter Display Gallery Item 1

Discover Amprobe ACDC-52NAV AC/DC CAT IV 600 A TRMS Navigator Clamp Meter

By: Amprobe

Model: 3729961

Sku: KJZ19ILLNF

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • True-rms technology improves accuracy in noisy environments
  • Measures AC/DC voltage to 1000 V, AC/DC current to 600 A, plus resistance, frequency, capacitance, power and power factor, total harmonics distortion (THD) and individual harmonics from 1 to 25
  • Includes inrush current measurement and phase rotation indication for 3-phase motors
  • Non-contact voltage detection enhances safety
  • Low pass filter enables measuring voltage and frequency on variable frequency drives
  • Continuity beeper quickly identifies shorts and opens
  • Large backlit digital display with analog bar graph presents the full picture
  • Min, max and smart data hold
  • Peak hold identifies spikes and transients
  • In-jaw flashlight automatically lights when jaws open to illuminate dark panels and junction boxes
  • Auto power off conserves battery life
  • Maximum jaw opening accommodates large conductors up to 1.45″ (37 mm)
  • Rubber overmold body absorbs shocks—drop proof to 4 feet (1.2 m)
  • CAT IV-rated AC/DC current clamp meter
  • AC Current: 100.00 A, 1000.0 A, +/- (1.5 % rdg + 5 LSD)
  • DC Current: 100.00 A, 600.0 A: +/- (1.5 % rdg + 5 LSD)
  • AC Voltage: 100.00 V, 1000 V, +/- (1.0 % rdg + 5 LSD)
  • DC Voltage: 100.00 V, 1000 V, +/- (0.7 % rdg + 2 LSD)
  • Resistance: 1.0000 KO, 10.00 KO, 100.00 KO, +/- (1.0 % rdg + 3 LSD)
  • Frequency: 20.0 Hz to 10 KHz, +/- (0.5 % rdg +3 LSD)
  • Capacitance: 400.0 µF, 4.000 mF, +/- (1.9 % rdg + 8 LSD)
  • DCµA: +/- (1.7 % rdg + 2 LSD)
  • Temperature: +/- (1 % rdg + 0.8 oC)
  • THD (total harmonics distortion): 0.1% → 100.0%, +/- (3.0 % rdg + 10 LSD)
  • Individual harmonics: 1 → 25
  • Power: 10 kW → 600 kW, +/- (2.5 % rdg + 5 LSD)
  • Power factor: -1.00 → 1.00, +/- 3 degrees
  • Accommodates conductors: Up to 1.45″ (37 mm) in diameter
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The ACDC-52NAV clamp-on power meter is the ideal choice for jobs that require AC/DC current measurements to 600 A, AC/DC voltage to 1000 V and wide jaws to accommodate large conductors.

This AC/DC current clamp meter offers a full range of power quality diagnostics including power and power factor, total harmonics distortion, individual harmonics, in-rush current, phase sequence, TRMS and low pass filter for industrial power monitoring and verifying system conditions.

In the Box

  • Amprobe ACDC-52NAV AC/DC CAT IV 600 A TRMS Navigator Clamp Meter
  • Test Leads
  • Batteries (Installed)
  • Carrying Case
