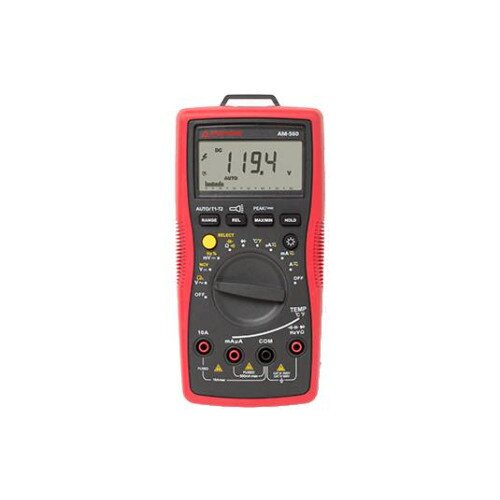

Amprobe AM-560 Advanced HVAC Multimeter
Amprobe AM-560 Advanced HVAC Multimeter Display Gallery Item 1
Amprobe AM-560 Advanced HVAC Multimeter - 2 Display Gallery Item 2
Amprobe AM-560 Advanced HVAC Multimeter - 3 Display Gallery Item 3
Amprobe AM-560 Advanced HVAC Multimeter - 4 Display Gallery Item 4

Amprobe AM-560 Advanced HVAC Multimeter - Shop Now and Save!

By: Amprobe

Model: 4210333

Sku: 2BXP4K70IT

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Measures AC/DC voltage up to 1000 V, AC/DC current, resistance, frequency, capacitance, temperature, and duty cycle
  • Dual thermocouple takes simultaneous temperature readings on low and high side of an HVAC system
  • Low pass filter accurately measures voltage on variable frequency drives
  • Non-contact voltage detection enhances safety
  • Audible continuity quickly identifies shorts and opens
  • Diode test to verify diode polarity
  • Data hold freezes the reading on the display for further analysis
  • Peak hold (crest) captures and holds the peak value of a voltage or current surge
  • MIN/MAX recording records min/max measurements over time to show voltage fluctuations
  • Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
  • CAT IV 600 V/CAT III 1000 V safety rated for high voltage environments
  • AC Voltage: 6.000 V, 60.00 V, 600.0 V, 1000 V, +/- (1.0 % rdg + 3 LSD) @ 45 Hz to 400 Hz, 0 V to 600 V
  • DC Voltage: 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V, +/- (0.5% rdg + 2 LSD) @ 6 V to 600 V ranges
  • AC Current: 600.0 μA, 6000 μA, 60.00 mA, 500.0 mA, 10.00 A, ±(1.2% Rdg + 5 LSD) @ 600 μA to 6000 μA ranges, 45 Hz to 400 Hz
  • Frequency: 60.00 Hz, 600.0 Hz, 6.000 kHz, 60.00 kHz, 600.0 kHz, 6.000 MHz, 60.00 MHz, +/- (0.1% rdg + 3 LSD)
  • Resistance: 600.0 Ω, 6.000 kΩ, 60.00 kΩ, 600.0 kΩ 6.000 MΩ 60.00 MΩ, +/- (1.0% rdg + 2 LSD) @ 6 kΩ to 600 kΩ ranges
  • Capacitance: 60.00 nF, 600.0 nF, 6.000 μF, 60.00 μF, 600.0 μF, 6000 μF, 60.00 mF, +/- (3.0% rdg + 5 LSD) @ 600 nF to 60 μF ranges
  • Temperature: -40 ⁰F to 1832 ⁰F -40 ⁰C to 1000 ⁰C, +/- (1.0% rdg + 12) @ >104 ⁰F to 752 ⁰F +/- (1.0% rdg + 8) @ >40 ⁰C to 400 ⁰C
  • Number of temperature inputs: Dual Thermocouple
  • Duty cycle: 10.00% to 90.00%, +/- (1.2% rdg + 30 LSD) @ 5 Hz to 2 kHz
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The AM-560 autoranging digital multimeter is specifically designed for advanced HVAC applications. This HVAC multimeter offers a full set of professional digital multimeter features to measure a complete range of electrical parameters and key functions for HVAC applications. Dual thermocouples take differential temperature measurements; a low pass filter enhances accuracy on variable frequency drive measurements; and capacitance can be used to check motor startup capacitors. The AM-560 also features micro amps for flame sensor troubleshooting, non-contact voltage detection, and a CAT IV safety rating.

In the Box

  • Amprobe AM-560 Advanced HVAC Multimeter
  • 9V(6F22) Battery Installed
  • Test Leads
  • Type-K Probe x 2
  • Temperature Adaptor
  • Velcro Strap
  • Carrying Case
