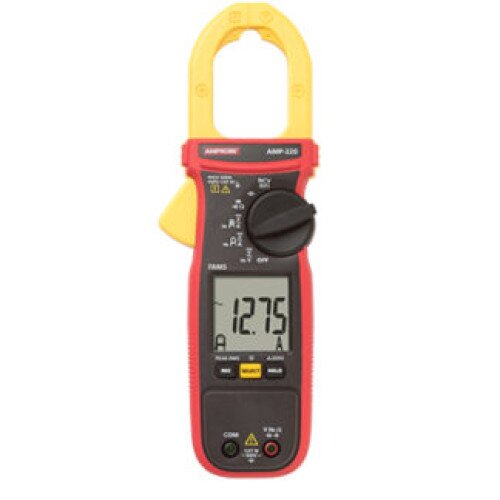

Amprobe AMP-220 600A AC/DC TRMS Clamp Meter
Amprobe AMP-220 600A AC/DC TRMS Clamp Meter Display Gallery Item 1
Amprobe AMP-220 600A AC/DC TRMS Clamp Meter - 2 Display Gallery Item 2
Amprobe AMP-220 600A AC/DC TRMS Clamp Meter - 3 Display Gallery Item 3
Amprobe AMP-220 600A AC/DC TRMS Clamp Meter - 4 Display Gallery Item 4
Amprobe AMP-220 600A AC/DC TRMS Clamp Meter - 5 Display Gallery Item 5

Amprobe AMP-220 600A AC/DC TRMS Clamp Meter - Shop Now and Save!

By: Amprobe

Model: 4560543

Sku: ZQS6E89OEA

Be the first to review this product

Sign up for price alert

$232.99

Availability: In Stock In Stock

New

  • Measures AC/DC Current to 600 A and AC/DC Voltage to 600 V
  • Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
  • Amp-Tip delivers precise low AC current measurements – 0 to 60 A
  • Includes a low pass filter to accurately measure voltage and current on variable frequency drives
  • Capacitance measurement, continuity beeper and diode test
  • Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
  • Offers data hold and relative zero for quick analysis
  • Maximizes battery life with auto power off and low battery indicator
  • Backlit display for easy measurement viewing in bright and dim environments
  • Accommodates conductors up to 1.37 in (35 mm)
  • CAT III 600 V safety rated
  • AC voltage (True-rms): Range: 0 to 600.0 V/ Accuracy: ±1.0% + 5LSD (50 to 60 Hz)
  • DC voltage: Range: 0 to 600.0 V/ Accuracy: ±1.0% + 5LSD
  • AC+DC voltage: Range: 0 to 600.0 V/ Accuracy: ±1.2% + 7LSD (50 to 60 Hz)
  • AC current: Range: 0 to 600.0 A/ Accuracy: ±1.8% + 5LSD (50 to 60 Hz) ±2.0% + 5LSD (100 to 400 Hz)
  • DC current: Range: 0 to 600.0 A/ Accuracy: ±2.0% + 5LSD (DC 50 to 100 Hz)
  • AC+DC current: Range: 0 to 600.0 A/ Accuracy: ±2.2% + 7LSD (DC 50 to 100 Hz) ±2.7% + 7LSD (100 to 400 Hz)
  • Precise low current AC: Range: 0 to 60.00 A/ Accuracy: ±1.5% + 5LSD (50 to 60 Hz)
  • Precise low current DC: Range: 0 to 60.0 A/ Accuracy: ±2.0% + 5LSD
  • Frequency: Range: 5.00 to 999.9 Hz/ Accuracy: ±1.0% + 5LSD (600 V range)/ Range: 50.0 to 400.0 Hz/ Accuracy: ±2.0% + 4LSD (600 A range)
  • Resistance: Range: 0.0 to 60.00 kΩ/ Accuracy: ±1.0% + 5LSD
  • Capacitance: Range: 0.0 to 2500 µF/ Accuracy: ±2.0% + 4LSD
  • Continuity beeper: ON ≤ 10 Ω, Off > 250 Ω
  • Non-contact voltage: 10 V to 1000 V AC (50 to 60 Hz)
  • Jaw opening: 1.37 in (35 mm)
  • Safty rating: CAT III 600 V
Quantity:
  • Add to Wishlist
  • Add to Compare

With a full range of AC/DC current, AC/DC voltage, and frequency measurement functions for basic electrical troubleshooting, the AMP-220 clamp meter with its large backlit display is an excellent amp clamp meter choice. Rated CAT III 600 V, the AMP-210 clamp meter offers True-RMS sensing, fast response processor, non-contact voltage detection, capacitance, resistance and continuity measurements to enhance efficiency and safety in today’s complex electrical environments. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. A low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency).

In the Box

  • Amprobe AMP-220 600A AC/DC TRMS Clamp Meter
  • Test Leads
  • (2) AAA Batteries (Installed)
  • Carrying Case
