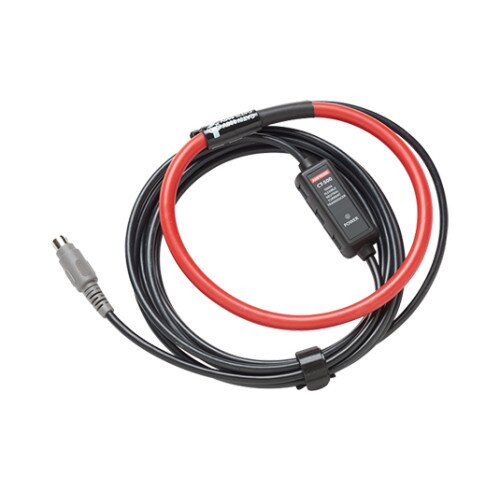

Amprobe CT-500 Flex Current Sensor for DM-5 - Shop Now and Save!

Model: 4726228

Availability: Out of stock

Current ranges: 1000 A, AC rms
Output voltage: 500 mVac / 1000 Aac (0.5 mV / A)
Measuring range: 0 to 1000 A (1850 Apeak)
Accuracy (sine wave): ±0.8% ± 0.2 mV (45 Hz to 65 Hz), ±1.5% ± 0.2 mV (40 Hz to 1 kHz)
Phase characteristics: 45 Hz to 65 Hz within ±2°, 40 Hz to 1 kHz within ±3°
Working voltage: 600 Vac rms
Max allowed input: 1300 Aac continuous
Head circumference: 15.75 in (40 cm)
Head cable diameter: 0.33 in (8.5 mm)
Cable length (head to electronics): Approx. 8.56 ft (2.7 m)
Cable length (output cable): Approx. 0.66 ft (0.2 m)
Output terminal: Mini-DIN-6 connector
Output impedance: 100 Ω or less
Current consumption (at power supply 3 V): Max. 2 mA (typical)
Operating temperature and humidity: 14 °F to 122 °F (-10 °C to 50 °C), ≤85 %RH (no condensation), Guaranteed accuracy at 73 °F ± 9 °F (23 °C ± 5 °C), ≤85 %RH (no condensation)
Storage temperature and humidity: -4 to 140 °F (-20 °C to 60 °C), ≤85 % RH (no condensation)
Operating altitude: 0 to 6,561 ft (0 to 2,000 m)
EMC: EN 61326
Safety compliance: UL/IEC 61010-1, IEC 61010-2-030, IEC 61010-2-032 Measurement CAT III 600 V, CAT IV 300 V, Pollution degree 2

Stock Request Notify When Available

Amprobe Flex Current Sensor Developed for the Amprobe DM-5, your all-in-one solution for excellent power quality.
