Amprobe PK-110 Electrical Test Kit
Amprobe PK-110 Electrical Test Kit Display Gallery Item 1

Amprobe PK-110 Electrical Test Kit - Shop Now and Save!

By: Amprobe

Model: 4394419

Sku: D8OY3E0XVY

Be the first to review this product

Sign up for price alert

$77.99

Availability: In Stock In Stock

New

  • Residential electrical test kit includes AM-420 Digital Multimeter, VP1000 Non-Contact Voltage Probe, ST-102B Socket Tester with GFCI and all required batteries
  • Kit contains tools to measure voltage up to 300 V AC/DC, AC/DC current and resistance, capacitance and perform battery tests
  • RV Safety Testing: check RV pedestal outlets (20 A, 30 A, 50 A) for proper wiring and grounding, check for “hot skin conditions and proper wiring of outlets in your RV
  • Check for presence of voltage in receptacles, switches, extension cords and light fixtures
  • Verify proper wiring of GFCI (ground fault circuit interrupter) and standard US and Canadian wall outlets with a simple push of a button
  • AC voltage: 200.0 / 250 V, +/-(1.5% rdg + 4 LSD) @ 45 Hz to 400 Hz
  • DC voltage: 200 mV 2.000 / 20.00 / 200.0 / 250 V, +/-(1.2% rdg + 2 LSD) @ 200 mV to 200 V
  • DC current: 200.0 μA 2.000 / 20.00 / 200.0 mA, +/-(1.2% rdg + 5 LSD) @ 200 μA to 20 mA
  • Resistance: 200.0 Ω 2.000 / 20.00 / 200.0 kΩ 2.000 MΩ, +/-(1.5% rdg + 5 LSD) @ 200 Ω to 200 kΩ
  • Continuity: Beeps at ≤10 Ω, off at >70 Ω
  • Diode test: Open-circuit voltage is around 1.5 V. Normal voltage is around 0.5 V to 0.8 V for silicon PN junction.
  • Battery test: 1.5 V, 9 V, +/-(8.0% rdg + 1 LSD)
  • Operating voltage range: 90 V AC → 1000 V AC, 50/60 Hz
  • Sensitivity: Lights at approx. 10 mm (0.39 in) distance from a wire carrying 120 Vac
  • Operating temperature: 0°C to +40°C (32°F to 104°F), ≤ 80% RH
  • Storage condition: -10°C to +50°C (14°F to 122°F), ≤ 95% RH
  • Operating altitude: 2000 meters
  • Power supply: Two 1.5 V AAA batteries
  • Safety compliance: IEC 61010-1, UL 61010-1 2nd Ed. and CAN/CSA C22.2 No. 61010-1-04
  • EMC compliance: IEC 61326-1
  • Operating Voltage: 110 – 125 V AC, 50 – 60 Hz
  • Wattage: 0.3 W
  • Actuator: Black button
  • Indicator: Red LED, three lights, neon
  • Lamp lens Colors: One red, two amber
  • Six Conditions Indicated: Open ground, open neutral, open hot, hot/ground reverse, hot/neutral reverse, correct
  • Safety Compliance: C22.2 No. 160-M1985 / UL 1436 – 4th Edition
Quantity:
  • Add to Wishlist
  • Add to Compare

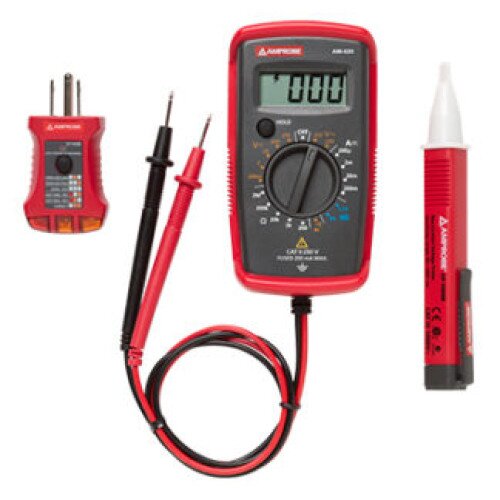

Amprobe’s PK-110 Electrical Test Kit offers three electrical testers with testing functions suitable for a variety of residential applications. The kit includes the AM-420 Digital Multimeter, ST-102B Socket Tester with GFCI and VP-1000 Non-Contact Voltage Detector. From identifying voltage presence in outlets and switches to confirming proper wiring of GFCI breakers, the PK-110 kit boasts all the features needed to perform quick and safe voltage tests.

In the Box

  • Amprobe PK-110 Electrical Test Kit
  • ST-102B
  • VP-1000
  • Batteries
