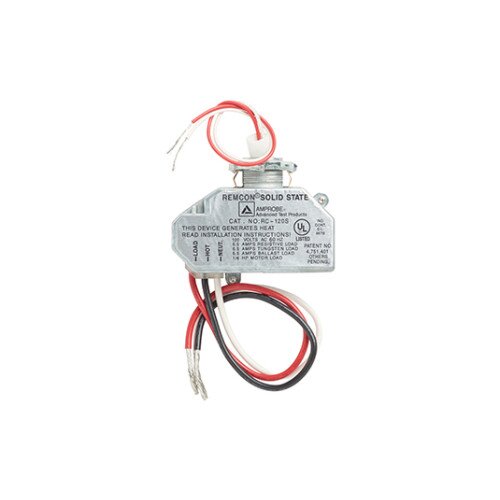

Amprobe RC-120S Remcon Relay Switch
Amprobe RC-120S Remcon Relay Switch Display Gallery Item 1
Amprobe RC-120S Remcon Relay Switch - 2 Display Gallery Item 2
Amprobe RC-120S Remcon Relay Switch - 3 Display Gallery Item 3
Amprobe RC-120S Remcon Relay Switch - 4 Display Gallery Item 4

Amprobe RC-120S Remcon Relay Switch - Shop Now and Save!

By: Amprobe

Model: 2731504

Sku: 2HR95DVHCS

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Switches AC power on and off using low voltage control circuit
  • Built in transformer, no step down transformers necessary
  • Single relay can be controlled by multiple switches and multiple relays can be controlled by single switch
  • Light #22 cable can be used to control relay or armored cable – significant time and cost savings instead of Romex
  • AC Voltage from 105 to 125 V
  • AC Current up to 6.5 A (1/4 HP max. motor load at 120 V)
  • Frequency: 60 Hz
  • Safe control switching: 10 V DC max and 10 milliamps max
  • AC current rating: Resistive, Tungsten, 6.5 Amps max, at 120 VAC, ¼ HP Motor Load.
  • AC voltage rating: 105 to 125 V AC, 50-60 Hz.
  • Control switching current: 10 milliamps max
  • Control switching voltage: 10 V DC max. isolated from AC line
  • Control switch closure time: 5 milliseconds min
  • Ambient operating temperature: 104 °F (40 °C) max. for full rated output.
  • Operation: Contact closure of control wires turns AC power ON.
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Each Remcon relay has a built-in transformer for unit control. Each relay in the system operates independently from and has no effect upon other relays. Install as little as one relay and operate it with as many switches as is desired.

In the Box

  • Amprobe RC-120S Remcon Relay Switch
