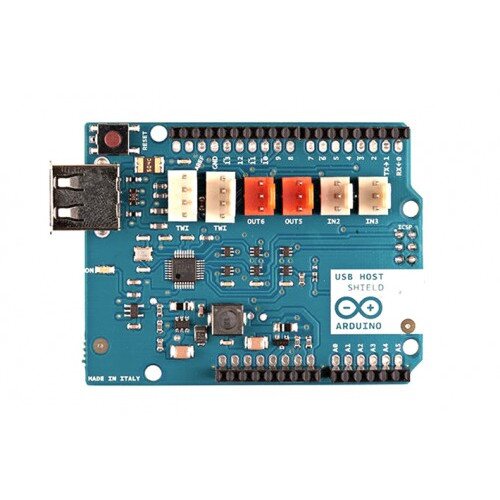

Arduino USB Host Shield Board
Arduino USB Host Shield Board Display Gallery Item 1
Arduino USB Host Shield Board - 2 Display Gallery Item 2
Arduino USB Host Shield Board - 3 Display Gallery Item 3

Arduino USB Host Shield Board - Shop Now and Save!

By: Arduino

Model: A000004

Sku: XF8E2SULB1

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Operating Voltage: 5V
  • USB Controller: MAX3421E
  • Max Current: 500mA when Arduino is powered by a suitable power supply connected to the Arduino power jack
  • Max Current: 400mA when Arduino is powered by its USB port
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Arduino USB Host Shield allows you to connect a USB device to your Arduino.

The Arduino USB Host Shield allows you to connect a USB device to your Arduino board. The Arduino USB Host Shield is based on the MAX3421E (datasheet), which is a USB peripheral/host controller containing the digital logic and analog circuitry necessary to implement a full-speed USB peripheral or a full-/low-speed host compliant to USB specification rev 2.0. The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules onto the board.

The following device classes are supported by the shield:

  • HID devices: keyboards, mice, joysticks, etc.
  • Game controllers: Sony PS3, Nintendo Wii, Xbox360.
  • USB to serial converters: FTDI, PL-2303, ACM, as well as certain cell phones and GPS receivers.
  • ADK-capable Android phones and tables.
  • Digital cameras: Canon EOS, Powershot, Nikon DSLRs and P&S, as well as generic PTP.
  • Mass storage devices: USB sticks, memory card readers, external hard drives, etc.
  • Bluetooth dongles.

In the Box

  • Arduino USB Host Shield Board
