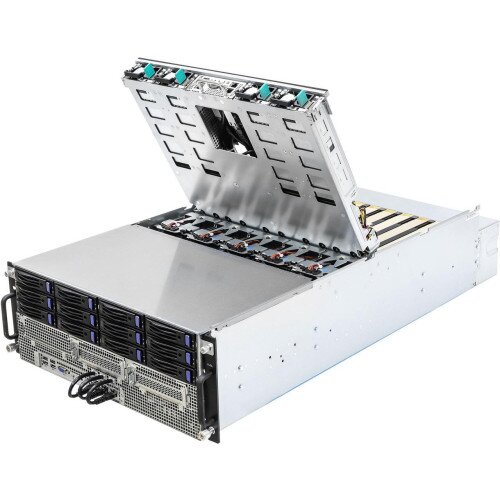

ASRock 4U8G-ICX2/2T 4U Rackmount Server
ASRock 4U8G-ICX2/2T 4U Rackmount Server Display Gallery Item 1
ASRock 4U8G-ICX2/2T 4U Rackmount Server - 2 Display Gallery Item 2
ASRock 4U8G-ICX2/2T 4U Rackmount Server - 3 Display Gallery Item 3
ASRock 4U8G-ICX2/2T 4U Rackmount Server - 4 Display Gallery Item 4

ASRock 4U8G-ICX2/2T 4U Rackmount Server - Shop Now and Save!

By: ASRock

Model: 4U8G-ICX2/2T

Sku: L7JG5VP2HU

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Form Factor: 4U Rackmount
  • Buttons: Power button w/ LED, Reset button, NMI button, UID button w/ LED
  • LEDs: System fault LED, HDD activity LED
  • I/O Ports: 1 DB15 (VGA), 4 USB Type-A (USB3.2 Gen1), 2 RJ45 (10GbE) by Intel X710-AT2, shares with Rear Panel I/O
  • IPMI LAN: 1 dedicated IPMI LAN, shares with Rear Panel I/O
  • Front Side Drive Bay: 12 Hot-swap 3.5" drive bays, supports 2 SATA drives, supports 8 SAS/SATA drives by additional PCIe 8-port RAID/HBA card
  • Front Side Backplane: three 4-port NVMe*/SAS/SATA passive backplanes
  • Internal Side: 1 M-key (PCIe3.0 x4/SATA) supports 22110/2280 form factor
  • Power Supply: Type: 3+1 CRPS, Output Watts: 1600W, Efficiency: 80-PLUS Platinum, AC Input: Lowline: 100-127V, Highline: 200-240V
  • Fan: 5 Middle Hot-swap 80x80mm fans, 5 Rear Hot-swap 80x38mm fans
  • Fail LED: Abnormal(DC on): LED ON (Solid Red), Normal: LED OFF
  • CPU: Support Dual 3rd Gen Intel® Xeon® Scalable Processors
  • Socket: 1+1 Socket P+ (LGA 4189)
  • Thermal Design Power: 270W
  • Chipset: C621A
  • Supported DIMM Quantity: 16+16 DIMM slots (2DPC)
  • Supported Type: DDR4 288-pin RDIMM, LRDIMM, NVDIMM
  • Max. Capacity per DIMM: RDIMM: up to 64GB, LRDIMM: up to 256GB, NVDIMM: up to 32GB
  • Max. DIMM Frequency: RDIMM/ LRDIMM: up to 3200 MHz, NVDIMM: up to 2666 MHz
  • Voltage: 1.2V
  • BMC Controller: ASPEED AST2500: IPMI2.0 with iKVM and vMedia support
  • IPMI Dedicated GLAN: 1 Realtek RTL8211E for dedicated management GLAN
  • Controller: ASPEED AST2500
  • VRAM: DDR4 4GB
  • BIOS Type: 32MB AMI UEFI Legal BIOS
  • BIOS Features: Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash
  • Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
  • Humidity: - Non operation humidity: 20% ~ 90% ( Non condensing)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • 4U Rackmount with 3+1 Redundant 1600W CRPS
  • Dual Socket (LGA 4189), support 3rd Gen Intel Xeon Scalable Processors
  • 16+16 DIMM slots, support DDR4 RDIMM/ LRDIMM/ NVDIMM
  • 12 hot-swap 3.5" drive bays
  • Supports up to 8 dual-slot PCIe4.0 x16
  • Front side 1 FHHL PCIe3.0 x4 and OCP NIC 3.0
  • On-board dual 10GbE RJ45 by Intel X710-AT2

In the Box

  • ASRock 4U8G-ICX2/2T 4U Rackmount Server
