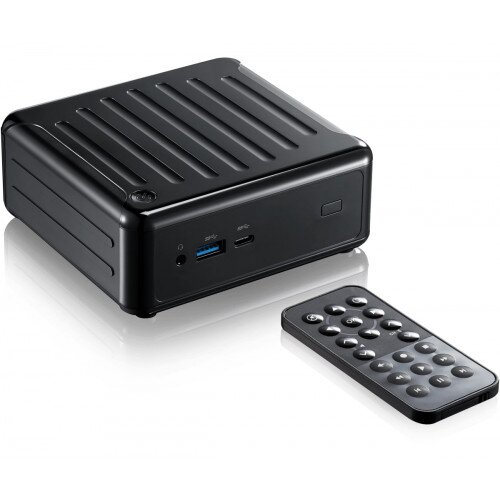

ASRock Beebox-S Series Mini-PC Barebone - Intel Core i3-7100U Price Worldwide

By: ASRock

Model: Beebox-S 7100U

Sku: TXJAEBJQLQ

Availability: Out of stock New

Availability: Out of stock

  • CPU: Intel Core i3-7100U (3M Cache, up to 3.10 GHz)
  • Memory: Supports DDR4 2133 MHz, 2 x SO-DIMM slots, Max. 32GB
  • Chipset: Intel Kabylake-U
  • Audio: Realtek ALC283
  • HDD: Supports M.2 slot (type 2260 & 2280, supports SATA3 6.0Gb/s & PCIe 3.0x4 M.2 SSD) / Supports 2.5" SATA3 HDD
  • LAN: Gigabit LAN
  • WLAN: 802.11 ac + BT 4.0
  • Front I/O: USB 3.1 Gen1 / USB 3.1 Gen2 (Type C) / IR / Audio-out with MIC-In
  • Rear I/O: 2 x HDMI / DP / 2 x USB 3.1 Gen1 LAN / Kensington Lock
  • Volume (liters): 0.6L
  • VESA: Bracket included, supports 75 x 75 and 100 x 100 mm
  • Power Unit: 65W/19V Adapter
  • OS: Microsoft Windows 10 64-bit compliant
Stock Request Notify When Available

Intel Core i3-7100U Processor (Up to 2.40GHz)

Improved performance, lower power consumption, and new multimedia capabilities.

M.2 SSD Slot (2260/2280)

*Supports SATA3 6.0 Gb/s & PCIe 3.0 x4 M.2 SSD.

4K Support

The only system in the segment that supports dual channel memory for supporting 4K video playback.

Supports Up to 48CH H.265 IP Cameras

Beebox is able to work as an industrial grade 48 channel NVR (Networking Video Recorder) system. It is also capable of HEVC (H.265) recording for up to 48 IP cameras in D1 (704x576) resolution.

HDR & 10-bit Video Playback

Supports HEVC 10-bit and HDR (High Dynamic Range) video playback to provide substantially improved video quality and higher bit depth video experience. The 10-bit content supports up to 1.07 billion color palette, it can have more detail of image, and greater range between the brightest and darkest part of the image.

Swift Data Transfer and Device Charging – Type-C USB

USB Type-C doubles the charge speed!

The World's First NUC with a USB 3.1 Gen2 Type-C Port

Faster device charging with power currents of 3.0 ampere.

The Fastest Wireless Internet – 802.11ac WiFi

Beebox comes with an exclusive 802.11ac WiFi (2.4G/5G WiFi) module.

Quiet Design

A special design that produces absolutely low noise.

Power Gear

Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.

Remote Controller

A free bundled remote controller for Beebox.

In the Box

  • ASRock Beebox-S Series Mini-PC Barebone
