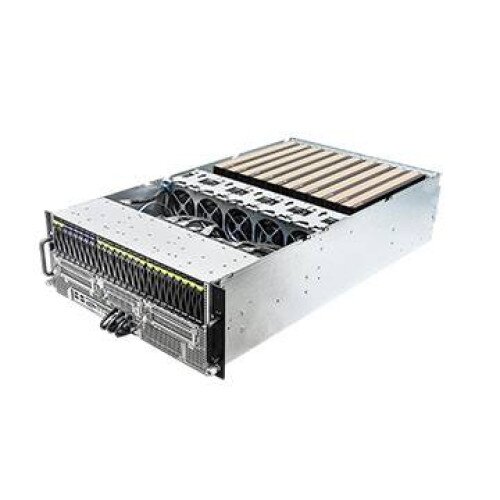

ASRock Rack 4U10G-GNR2 Motherboard
ASRock Rack 4U10G-GNR2 Motherboard Display Gallery Item 1
ASRock Rack 4U10G-GNR2 Motherboard - 2 Display Gallery Item 2
ASRock Rack 4U10G-GNR2 Motherboard - 3 Display Gallery Item 3

ASRock Rack 4U10G-GNR2 Motherboard - Shop Now and Save!

By: ASRock Rack

Model: 4U10G-GNR2

Sku: 2OO3AC1G7S

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Form Factor: 4U Rackmount
  • Support MB: GNR2D32G-2L+
  • Buttons: Power button w/ LED, Reset button, NMI button, UID button
  • LEDs :System fault LED, HDD activity LED
  • I/O Ports: 2 RJ45 (1GbE) by Intel i350, shares with Rear IO, 4 Type-A (USB3.2 Gen1), 1 DB15 (VGA)
  • Front Side Drive Bay: 18 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays, 16 Hot-swap 2.5" SATA/SAS* drive bays, Additional RAID/HBA card required to support the 20 x 2.5" SATA/SAS drive bays
  • Front Side Backplane: 24-port NVMe/SATA/SAS* passive backplanes *SAS drive is only supported with additional RAID/HBA cards
  • Internal Side: 1 M-key (PCIe5.0 x4), supports 22110/2280 form factor [CPU0]
  • Output Watts: 1000W @ 100-127Vac input / 2000W @ 200-240Vac input 3+1 CRPS
  • Efficiency: 80-PLUS Platinum
  • AC Input: Low-line: 100-127Vrms, 47/63Hz ; High-line: 200-240Vrms, 47/63Hz
  • Fan: 5 Middle Hot-swap 80x80 mm fans
  • CPU: Supports Intel Xeon 6700E-series processors
  • Socket: 1+1 Socket E2 (LGA 4710)
  • Thermal Design Power: Up to 400W
  • Chipset: System on Chip
  • Supported DIMM Quantity 16+16 DIMM slots (2DPC)
  • Supported Type DDR5 RDIMM
  • Max. Capacity per DIMM RDIMM: 128GB
  • Max. DIMM Frequency: RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC)
  • Voltage: 1.1V
  • PCIe x 16: Rear: 10 FHFL dual-slot PCIe5.0 x16 (with PEX89104 PCIe Switch), 1 FHFL single-slot PCIe5.0 x16 (CPU direct link), Front: 2 FHHL PCIe5.0 x16
  • TPM support: 1 (13-pin, SPI)
  • Additional GbE Controller Intel i350: 2 RJ45 (1GbE)
  • OCP slot: 1 OCP NIC 3.0 (PCIe5.0 x16)
  • BMC Controller: ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
  • IPMI Dedicated GLAN: 1 Realtek RTL8211F for dedicated management GLAN
  • Controller: ASPEED AST2600
  • VRAM: DDR4 512MB
  • UID: Button/LED UID button
  • VGA Port: 1 DB15 (VGA)
  • USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
  • RJ45: 2 RJ45 (1GbE) by Intel i350, shares with Front Panel, 1 dedicated IPMI, shares with Front Panel
  • BIOS Type: AMI UEFI BIOS; 512Mb SPI Flash ROM
  • BIOS Features: Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash
  • Temperature: CPU, MB, Card side Temperature Sensing
  • Fan: Fan Tachometer, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), Fan Multi-Speed Control
  • Voltage: P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB
  • Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
  • Humidity: Non operation humidity: 20% ~ 90% ( Non condensing)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • 4U Rackmount with 3+1, 80-PLUS Platinum, 2000W CRPS
  • Dual Socket E2 (LGA 4710), supports Intel Xeon 6700E-series processors
  • 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
  • 18 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
  • Up to 16 hot-swap 2.5" SATA/SAS* drive bays *Additional RAID/HBA card required
  • 10 FHFL dual-slot PCIe5.0 x16 (with PEX89104 PCIe Switch)
  • 1 FHFL single-slot PCIe5.0 x16 (CPU direct link), 2 FHHL PCIe5.0 x16
  • Supports 1 M.2 (PCIe5.0 x4)
  • 1 OCP NIC 3.0 (PCIe5.0 x16), 2 RJ45 (1GbE) by Intel i350
  • Remote Management (IPMI)

In the Box

  • ASRock Rack 4U10G-GNR2 Motherboard
