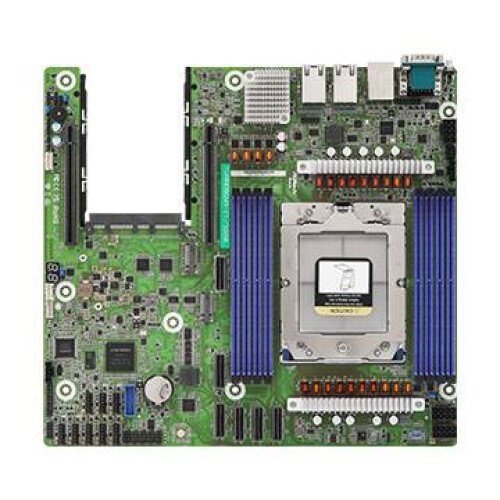

ASRock Rack TURIND8QM3-2T/500W Motherboard
ASRock Rack TURIND8QM3-2T/500W Motherboard Display Gallery Item 1
ASRock Rack TURIND8QM3-2T/500W Motherboard - 2 Display Gallery Item 2
ASRock Rack TURIND8QM3-2T/500W Motherboard - 3 Display Gallery Item 3
ASRock Rack TURIND8QM3-2T/500W Motherboard - 4 Display Gallery Item 4

ASRock Rack TURIND8QM3-2T/500W Motherboard - Shop Now and Save!

By: ASRock Rack

Model: TURIND8QM3-2T/500W

Sku: K949U98WU4

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Form Factor: CEB
  • CPU: Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • Socket: Single Socket SP5 (LGA 6096)
  • Thermal Design Power: Up to 500W
  • Chipset: System on Chip
  • Supported DIMM Quantity: 8 DIMM slots (1DPC)
  • Supported Type: Supports DDR5 288-pin RDIMM, RDIMM-3DS
  • Max. Capacity per DIMM: RDIMM: 96GB (2R), RDIMM-3DS: 512GB (2S8Rx4)
  • Max. DIMM Frequency: 6000 MHz
  • Voltage: 1.1V
  • PCIe x 16: SLOT6: PCIe5.0 / CXL2.0* x16, SLOT1: PCIe4.0 x16
  • M.2 slot: 1 M-key (PCIe5.0 / CXL2.0* x4 or SATA 6Gb/s), supports 2280 form factor, 1 M-key (PCIe5.0 / CXL2.0* x4 or SATA 6Gb/s), supports 22110/2280 form factor
  • Others: 1 MCIO (PCIe5.0 / CXL2.0* x8 or 8 SATA 6Gb/s), 1 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 4 MCIO (PCIe5.0 x8)
  • PCH Built-in Storage: AMD EPYC 9005/9004 (18 SATA 6Gb/s): 2 MCIO, 2 M.2
  • Additional GbE Controller: Broadcom BCM57416: 2 RJ45 (10GbE)
  • OCP slot: 1 OCP NIC 3.0 (PCIe5.0 x16)
  • BMC Controller: ASPEED AST2600
  • IPMI Dedicated GLAN: 1 Realtek RTL8211F for dedicated management GLAN
  • Controller: ASPEED AST2600
  • VRAM: DDR4 512MB
  • UID Button/LED 1 UID button w/ LED
  • VGA Port: 1 DB15 (VGA)
  • Serial Port: 1 DB9 (COM)
  • USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
  • RJ45: 2 RJ45 (10GbE) 1 dedicated IPMI
  • Power Connector: 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V)
  • Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
  • System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
  • VGA header: 1
  • Speaker Header: 1 (4-pin)
  • Buzzer: 1
  • Fan Header: 8 (6-pin)
  • Thermal Sensor Header: 1
  • TPM Header: 1 (13-pin, SPI)
  • SGPIO Header: 2
  • HSBP: 1
  • SMBus header: 1
  • PMBus header: 1
  • IPMB Header: 1
  • Clear CMOS: 1 (contact pads)
  • Others: 1 NCSI_SEL for IPMI shared NIC
  • USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
  • NMI Header: 1
  • Standby PWR LED: 1 (5VSB)
  • 80 Debug Port LED: 1
  • Fan Fail LED: 8
  • BMC heartbeat LED: 1
  • BIOS Type: AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
  • BIOS Features: ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
  • Temperature: CPU, MB, Card side, TR1 Temperature sensing
  • Fan: Fan Tachometer, Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), Fan Multi-Speed Control
  • Voltage: VDDCR_CPU, VDDCR_SOC, VDDIO, VDD_18_S5, VDD_33_S5, VDD_11_S3, +3V, +5V, +12V, +BAT, +1V8SB, 3VSB, 5VSB
  • Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
  • Humidity: Non operation humidity: 20% ~ 90% ( Non condensing)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • TDP up to 500W
  • CEB (12" x 11")
  • Single Socket SP5 (LGA 6096), supports AMD EPYC 9005*/9004 (with AMD 3D V-Cache Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 PCIe5.0 / CXL2.0 x16
  • 1 MCIO (PCIe5.0 / CXL2.0 x8 or 8 SATA 6Gb/s), 1 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 4 MCIO (PCIe5.0 x8)
  • Supports 2 M.2 (PCIe5.0 / CXL2.0 x4 or SATA 6Gb/s)
  • Up to 18 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

In the Box

  • ASRock Rack TURIND8QM3-2T/500W Motherboard
