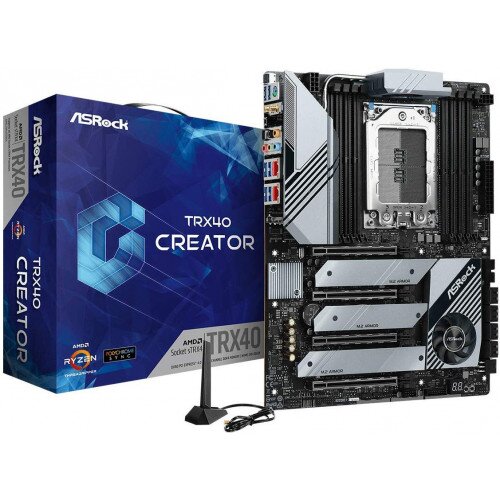

ASRock TRX40 Creator Motherboard Price Worldwide

By: ASRock

Model: TRX40 Creator

Sku: HIYEUJG65X

$681.99

Availability: In Stock In Stock New

  • ASRock USB 3.2 Gen2: ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
  • ASRock Super Alloy: XXL Aluminum Alloy Heatsink
  • CPU: Supports AMD Socket sTRX4
  • Chipset: AMD TRX40
  • Memory: Quad Channel DDR4 Memory Technology
  • BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics: n/a
  • Audio: 7.1 CH HD Audio (Realtek ALC4050H+ALC1220)
  • LAN1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (AQUANTIA AQC107):
  • Wireless LAN: Intel 802.11ax WiFi Module
  • Slots: 4 x PCI Express 4.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE3); triple at x16 (PCIE1) / x16 (PCIE3) / x8 (PCIE4); quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE3) / x8 (PCIE4))*
  • Storage: 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  • Connector: 1 x TPM Header
  • Rear Panel I/O: 2 x Antenna Ports
  • OS: Microsoft Windows 10 64-bit
Quantity :

Motherboard Built For Content Creators!

Built with primo components and out edge technology, ASRock Creator series makes content creation easy and pleasure.

UNBEATABLE HEATSINK ARMOR WITH HYPER M.2 (GEN4 X4)

Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath is the next generation PCI Express 4.0 Hyper M.2 Socket, with twice the transfer speed of the previous 3rd Generation.

Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock’s motherboard equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

Separated CPU Power Connector Design

Unlike traditional dual CPU power connectors which are located closely together at the same side, ASRock separates them to either side of motherboard in order to create wider trace for CPU VRM. This design brings better power delivery efficiency and lower temperature, thus improving system stability and increasing overclocking potential.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 90A continuous current for each phase, thus providing improved thermal result and superior performance.

USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

AQUANTIA 10Gb/s BASE-T Ethernet

The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.

Server-Grade Low-Loss PCB

The server grade PCB prevents PCB bending and improves signal integrity, giving higher PCIe 4.0 and memory performance as well as system stability, giving a reliable and long-lasting system without any compromise.

In the Box

  • ASRock TRX40 Creator Motherboard
  • 4 x SATA Data Cables
  • ASRock SLI_HB_Bridge_3S Card
  • ASRock WiFi 2.4/5 GHz Antenna
  • 3 x Screws for M.2 Sockets
  • 3 x Standoffs for M.2 Sockets
