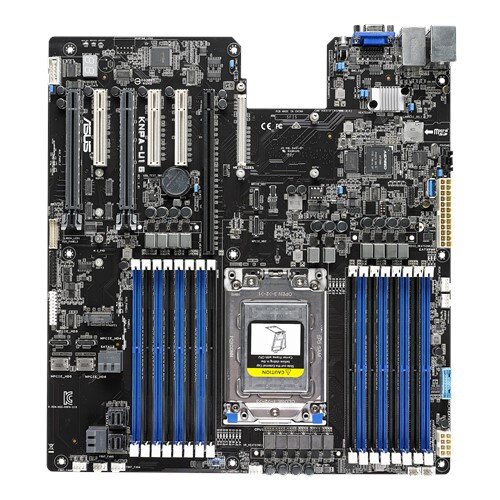

Discover ASUS KNPA-U16 Socket SP3 DDR4 M.2 EEB Server Motherboard

By: ASUS

Model: KNPA-U16

Sku: 6O6QVTKWYY

Availability: Out of stock New

Availability: Out of stock

  • Processor / System Bus: Socket SP3, AMD EPYC 7000 Series
  • Core Logic: System on Chip (SoC)
  • Memory: Maximum up to 2048GB RDIMM
  • Form Factor: EEB (12"x13", 305mm x 330mm)
  • Storage: 8 x SATA3 6Gb/s ports by 2 Mini-SAS HD connectors
  • Networking: Dual Port Intel I350-AM2 Gigabit LAN controller + Mgmt LAN
  • Graphic: Aspeed AST2500 with 64MB VRAM
  • On Board I/O: USB 3.0 pin header , Up to 2 Devices, Internal A Type USB Port, Micro SD Card Slot, Serial Port Header, VGA Header, 8 x Fan Header , 4pin, TPM header, Chassis Intruder
  • Management Solution: ASUS Control Center
  • Environment: Operation temperature: 10℃ ~ 35℃
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Powered by AMD EPYC 7000 processor

KNPA-U16 is built on AMD EPYC platform to deliver incredible server performance. With up to 32 cores per CPU and up to 64 threads, KNPA-U16 packs incredible power in minimal space. 16 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.

Speed up your system with M.2

With SATA 6Gbps or PCIe Gen3 x4 bandwidth, KNPA-U16 features one M.2 with up to 32Gb/s data-transfer speeds and up to 22110 form factor. It is the perfect choice for an operating system or application drive, providing faster access to data.

Support for up to six NVMe SDDs

KNPA-U16 supports up to twelve SATA drives via two Mini-SAS HD and four SATA connectors for more connectivity with external devices and cleaner cable routing. With six onboard OCuLink connectors that provide efficient port-to-port connection with NVMe devices, KNPA-U16 eliminates the need for PCIe transaction cards, while providing the reduced latency and higher maximum bandwidth of NVMe technology.

Flexible expandability with six PCIe slots

With the scalable PCIe lane support of AMD EPYC processors, KNPA-U16 provides flexible expandability with six PCIe slots, as well as one connector for OCP 2.0 Mezzanine card support for applications that require high-bandwidth to transfer large data such as data center, HPC, web-hosting and enterprise uses.

Exclusive Thermal Radar Technology for Energy Efficiency

KNPA-U16 features ASUS-exclusive Thermal Radar technology with ambient sensors for internal and external temperature monitoring, and dynamic fan-curve adjustment, which lowers fan power consumption by up to 20% and reduces total cost of ownership — ideal for data centers with extreme workloads.

Comprehensive IT Infrastructure Management

KNPA-U16 features an embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

ASUS ProCool connector

ASUS ProCool power connectors are designed without any hollow areas, enabling lower impedance, faster heat dissipation and cooler operating temperatures for reduced power loss and increased cost savings.

In the Box

  • ASUS KNPA-U16 Socket SP3 DDR4 M.2 EEB Server Motherboard
  • I/O Shield
  • 4 x SATA 6Gb/s cable
  • Driver Disc.
