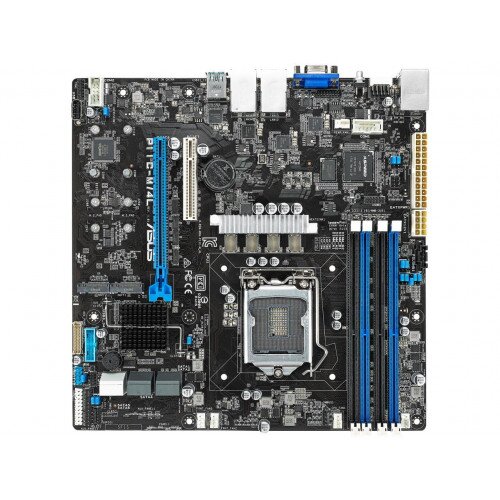

ASUS P11C-M/4L LGA1151 C242 Server Workstation Micro ATX Motherboard Price Worldwide

By: ASUS

Model: P11C-M/4L

Sku: GVTGHT1Q6Z

$292.99

Availability: In Stock In Stock

New

  • Processor / System Bus: Socket LGA1151, Intel Xeon processor E-2100 family, Intel Xeon processor E-2200 family
  • Core Logic: Intel C242 Chipset
  • Memory: 4 (2-channel)
  • Form Factor: U ATX (9.6"x9.6", 244mm x 244mm)
  • ASUS Features: FAN speed control, Rack Ready (Rack and Pedestal dual use), ASUS Control Center
  • Graphic: Aspeed AST2500 with 32MB VRAM
  • On Board I/O: TPM header, PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector), COM port, USB 3.0 pin header , Up to 2 Devices, USB 2.0 pin header , Up to 2 Devices, USB connector 2, 5 x Fan Header , 4pin, SMBus, Chassis Intruder, 4 x Front LAN LED, Serial Port Header, VGA Header, 2 x M.2 Connector, Onboard header for optional management card
  • Management Solution: ASUS Control Center, Optional ASMB9-iKVM for KVM-over-Internet
Quantity:
  • Add to Wishlist
  • Add to Compare

Micro-ATX compact server board with multiple expandability options

P11C-M/4L is a server motherboard based on the Intel Xeon E platform and Intel C242 chipset offering quad server-class Intel Ethernet and flexible expandability with dual M.2, six SATA 6G, two PCIe. The 9.6” x 9.6” micro ATX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.

Dual M.2 for up to 32Gbps performance and data redundancy

P11C-M/4L comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

NVMe high-speed storage interface

P11C-M/4L adopts the first-to-market NVMe technology to reduce latency, lower power consumption and provides faster CPU to data storage performance to gain larger throughputs. By offering flexible NVMe upgrade package of switching storage interface including PCIe to U.2 add-on card or M.2 to U.2 adapter, P11C-M/4L features shared common backplane to improve drive choices.

Quad Intel I210AT Gigabit Ethernet

P11C-M/4L features quad server-class Intel Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.

TPM-M 2.0 ready

P11C-M/4L supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.

Comprehensive IT infrastructure management

P11C-M/4L features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

Enhanced serviceability

With its power button located on the front I/O panel, P11C-M/4L is designed to provide easier maintenance and deployment for diverse applications.

Quick initialization guidance

P11C-M/4L provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.

In the Box

  • ASUS P11C-M/4L LGA1151 C242 Server Workstation Micro ATX Motherboard
  • Gift Box (1-in-1)
  • 2 x Support CD
  • I/O shield
  • 6 x SATA 6G cables
  • Plate for LGA1151
  • Bulk Pack (10-in-1)
  • 2 x Support CD
  • I/O shield
  • Plate for LGA1151
