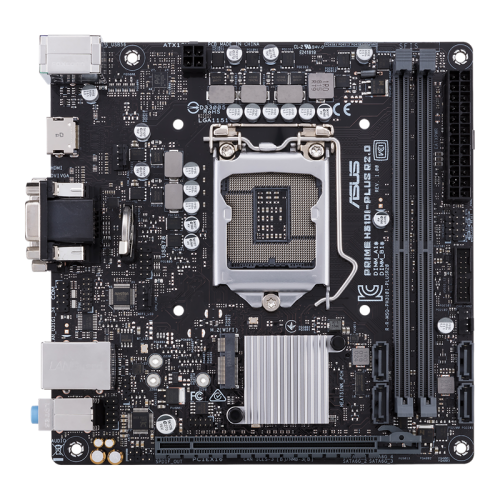

Discover ASUS Prime H310I-PLUS R2.0/CSM LGA 1151 (300 Series) Intel H310 HDMI ITX Intel Motherboard

By: ASUS

Model: PRIME H310I-PLUS R2.0/CSM

Sku: PX97E68N1I

Availability: Out of stock New

Availability: Out of stock

  • Designed exclusively for 9th generation Intel Core processors to maximize connectivity and speed with an integrated M.2 slot
  • ASUS Corporate Stable Model complimentary advance replacement and long lifecycle
  • ASUS Shield keeps your hardware and data protected with a self-recovering BIOS and anti-moisture coating
  • Fixed-position and color-coded connections allow for easy identification and assembly to optimize production line installation
  • LPC debug header streamlines motherboard troubleshooting
  • CPU: Intel Socket 1151 for 9th / 8th Generation Core i7/Core i5/Core i3/Pentium®/Celeron Processors
  • Chipset: Intel H310
  • Memory: 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture
  • Graphic: Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D/D-Sub ports
  • Storage: Intel H310 Chipset 1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode) 1 4 x SATA 6Gb/s port(s), gray,
  • LAN: Realtek RTL8111H, 1 x Gigabit LAN
  • Audio: Realtek ALC887 8-Channel High Definition Audio CODEC Supports : Jack-detection, Front Panel Jack-retasking
  • Special Features: ASUS 5X Protection III ASUS SafeSlot Core: Fortified PCIe Slot prevents damage, ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges, ASUS Overvoltage Protection: World-class circuit-protecting power design, ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability, ASUS DIGI+ VRM: 5 Phase digital power design
  • Operating System: Windows 10 64-bit
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express

ASUS Control Center Express is centralized IT management software designed to provide a convenient, effective, secure and cost-saving solution for enterprises, small and medium-sized businesses, and data centers in any type of industry. With the help of ASUS Control Center Express, your organization will be equipped to achieve success in even the most challenging modern IT environments.

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

Cooler by design

Prime 300 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.

Media-acclaimed UEFI BIOS

The UEFI BIOS is an early waypoint on any PC-building journey, and Prime 300 Series has one of the best in the business.

Built to Last

ASUS is the world's leading motherboard brand. Our motherboards are extensively tested for compatibility with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation - offering the peace of mind of knowing that your ASUS motherboard is fit for all environments and applications. Choosing ASUS is an assurance of trouble-free DIY experiences.

Outstanding audio

Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!

Audio shielding

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate layer for left and right tracks

Ensures minimal crosstalk between audio paths.

Premium Japanese-made audio capacitors

Premium parts provide an immersive sound signature, with exceptional fidelity.

Beyond VR ready

Prime 300 series isn't just VR ready - it goes way beyond. The ASUS Beyond VR Ready marque means that Prime 300 series has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

In the Box

  • ASUS Prime H310I-PLUS R2.0/CSM LGA 1151 (300 Series) Intel H310 HDMI ITX Intel Motherboard
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 2 x M.2 Screw Package
  • Supporting DVD
  • User´s manual
