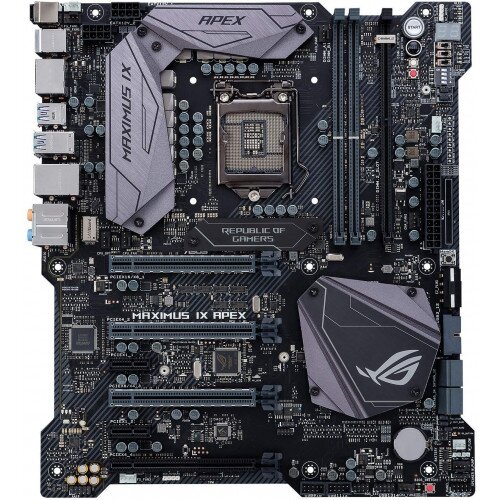

The new ROG Maximus IX Apex delivers bold design and unparalleled power, hearkening back to the origins of the brand. With an optimized layout and radical aesthetics, the Apex is engineered to smash performance boundaries and to look good while doing it. That makes it the perfect motherboard for overclocking addicts who push their system to the limits, or for enthusiasts who want to build a showcase gaming rig!
Maximus IX Apex is a motherboard built for serious performance. The ROG R&D team redefined boundaries with the Apex design -- elevating its overclocking potential to dizzying heights. Manufactured using some of the industry's highest-quality components, the Apex features a convention-breaking two-slot memory design on EATX to enable a highly optimized trace layout that reduces crosstalk and improves signal integrity. The Apex has already surpassed performance peaks by setting multiple world records to achieve global first places, breaking several long-standing records in the process. Among these record-breaking performances is the best Intel Core CPU-frequency since the X58 platform-based motherboards, with a single-core, single-thread frequency of 7.383GHz, and 7.328MHz at four cores and eight threads. The new board has also set a reference base-clock (BCLK) record at 584MHz, and a memory frequency surpassing 5GHz in single channel turning in a breathtaking 5041MHz! In total, Maximus IX Apex has secured eight WRs and 18 GFPs.
Maximus IX Apex includes an overclocker's toolkit with a dozen hardware-level controls to aid your overclocking experience. The motherboard's Dual BIOS allows you to experiment with different firmware versions and provides a path for recovery in case one becomes corrupt, and the onboard switch allows you to easily change between the first and second BIOS. The overclocker's toolkit also includes a Pause switch to halt the system, DRAM jumpers for quick memory configuration, and four PCIe switches for quick slot toggling. Other tools include Safe Boot and ReTry buttons, an LN2 jumper to aid POST at sub-zero temperatures, and a Slow mode switch. Combined, they're quick and easy time-savers designed to help you break more records!
Specialized circuitry allows Maximus IX Apex to detect when condensation occurs on the back of the board. Divided into three distinct sections CPU, DRAM and PCIe the feature provides a useful warning when an area may be at risk of short-circuiting.
The ROG team has raised the bar once again on memory overclocking with its latest 7th Gen Intel Core motherboard. Maximus IX Apex has enabled Corsair to showcase our Vengeance RGB DDR4 8GBx2 kit running at an impressive 4266MHz speed at CES 2017.
Maximus IX Apex's exclusive DIMM.2 module is a bundled expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a memory fan to direct cool air to the M.2 drives to prevent throttling, ensuring maximum performance.
