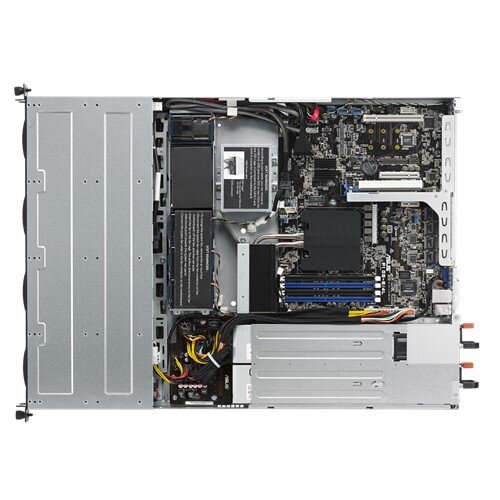

Discover ASUS RS300-E9-RS4 Flagship Model with Versatile Expandability Server

By: ASUS

Model: RS300-E9-RS4

Sku: EYZWXSXOQE

Availability: Out of stock New

Availability: Out of stock

  • Processor / System Bus: 1 x Socket LGA1151
  • Generation: E9
  • Core Logic: Intel C232 Chipset
  • Memory: Maximum up to 64GB UDIMM
  • Storage: 6 x SATA3 6Gb/s ports
  • HDD Bays: 4 x 3.5” Hot-Swap HDD Bays
  • Auxiliary Storage FDD/CD/DVD: Slim-type Optical Drive Bay
  • Networking: 4 x Intel I210AT + 1 x Mgmt LAN
  • Graphic: Aspeed AST2400 with 32MB VRAM
  • Power Supply: 1+1 Redundant 450W 80 PLUS Gold Power Supply, Rating: 100-127Vac/200-240Vac,8A/4A ,47-63Hz, Class 1
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Extreme expandability in 1U

RS300-E9-RS4 has high expandability with 2expansion slots in a configuration. This flexible expansion offers diverse applications in storage and networking to meeting the demands of future expansion.

ASUS PIKE II & 12G SAS support

ASUS PIKE II (optional)offers the latest 12Gb/s SAS together with PCI-E 3.0 solution. While ASUS latest 12Gb/s SAS doubles the data rate running at twice the speed of the previous generation, PCI-E 3.0 offers high reliability and faster speed connection. ASUS PIKE II meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID data protection.

Versatile storage capability

RS300-E9-RS4 is the perfect choice for an operating system or application drive, making the server work as fast as possible. ASUS further furnishes several choices for OS drive placement, such as M.2 (dual, up to 512GB x 2), SSDcage and SATA DOM. For disk storage, it can offer four 3.5” hot-swap disk bay and two internal 2.5” SSD bay (optional).

High networking connection

RS300-E9-RS4 with quad server-class Intel LAN controllers, which doubles queues compared to previous-generation.This is better for virtualization applications. In addition, the quad LAN teaming quadruples the network bandwidth and the failover function ensures uninterrupted network connections.

Best-in-class power efficiency and stability

RS300-E9-RS4 benefits from premium components hand-chosen and carefully arranged by ASUS engineers to provide premium efficiency. The ASUS exclusive material, which can be used 136.9 years ultra longevity at 65℃. With Beat Thermal Choke III, it takes 3℃ lower choke temperatures and reduces power consumption.

Comprehensive remote management

ASUS presents the most complete remote server control, including out of band ASMB8-iKVM (optional) and in-band ASWM Enterprise. Out-of-band ASMB8-iKVM offers LAN management, while in-band ASWM Enterprise provides “one on many” usage. IT professionals don’t have to check servers one by one, but instead can use ASWM Enterprise to monitor the status of all servers from a friendly graphical user interface.

In the Box

  • ASUS RS300-E9-RS4 Flagship Model with Versatile Expandability Server
