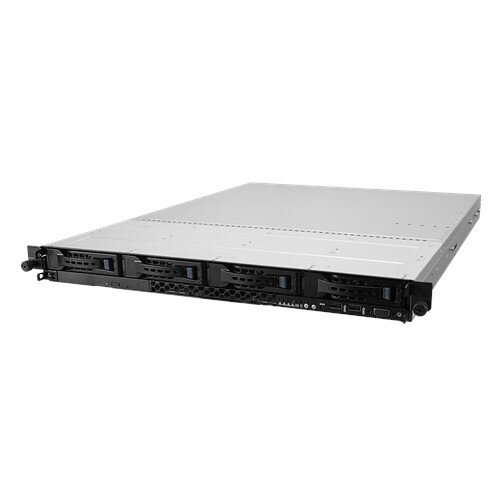

Discover ASUS RS500-E9-RS4 Intel Xeon C621 16 DIMM DDR4 Hot-swap Drives Rack Optimized Server

By: ASUS

Model: RS500-E9-RS4

Sku: PGPV2EHR04

Availability: Out of stock New

Availability: Out of stock

  • Processor / System Bus: 2 x Socket P (LGA 3647)
  • Generation: E9
  • Core Logic: Intel Lewisburg PCH C621
  • Memory: Maximum up to 2048GB LRDIMM
  • Expansion Slots: PCIe 3.0 x16 Slot(Gen3 x16 link); FH,HL, PCIe 3.0 x8 Slot(Gen3 x8 link); FH,HL, OCP 2.0 Mezzanine Conn.(Gen3 x16 link)
  • Storage: 2 x M.2 connector
  • Drive Bays: 4 x 3.5" Hot-swap Storage Bays (Backplane Supports 4 x 3.5" or 2.5" SATA/SAS Devices)
  • Auxiliary Storage FDD/CD/DVD: Optinal Slim-type DVD Drive
  • Networking: Dual Port Intel I350-AM2 Gigabit LAN controller + Mgmt LAN
  • Graphic: Aspeed AST2500 with 64MB VRAM
  • Form Factor: 1U
  • Power Supply: 1+1 Redundant 770W 80 PLUS Platinum Power Supply, Rating: 100-127/200-240 Vac, 10A/5A, 50-60Hz, Class I
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Powered by the latest 2nd Gen Intel Xeon Scalable processors

RS500-E9-RS4 is built on the latest 2nd Gen Intel Xeon Scalable processors to deliver incredible 1U server performance, packing incredible power into minimal space. RS500-E9-RS4 offers breakthrough performance with the latest Intel Optane DC persistent memory with an over 88% gain in input/output operations per second (IOPS) compared with the same configuration in SSD. Featuring the latest Intel Deep Learning Boost technology to enhance deep learning capabilities, RS500-E9-RS4 achieves a 3.1X performance improvement in the ResNet-50 and SSD VGG-16 models, fully demonstrating the inference capability of the new platform.

Flexible expansion for better storage and networking

RS500-E9-RS4 features one PCIe x16 and one PCIe x8 slots to deliver parallel computing power and one OCP 2.0 Mezzanine connector to support high-speed LAN card. This flexibility supports diverse storage and networking applications and ensures future expandability and high scalability in a 1U server.

Exclusive Thermal Radar technology for energy efficiency

RS500-E9-RS4 features ASUS-exclusive Thermal Radar technology with ambient sensors placed in CPU, memory, NVMe, SSD, OCP mezzanine connector for internal and external temperature monitoring, and dynamic fan-curve adjustment, which lowers fan power consumption by up to 20% and reduces total cost of ownership — ideal for data centers with extreme workloads.

Exclusive Performance Boost technology

ASUS features exclusive Performance Boost technology to achieve peak server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for time-sensitive applications such as financial services or data center operations.

Redundant Platinum PSU support

RS500-E9-RS4 supports redundant 770W 80 Plus Platinum and 450W 80 Plus Gold power supplies, which are 96%+ efficient, directly reducing operating costs and capital expenses. The 1+1 power-supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation.

Comprehensive IT infrastructure management

RS500-E9-RS4 features an embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

ASUS ProCool connector

ASUS ProCool power connectors are designed without any hollow areas, enabling lower impedance, faster heat dissipation and cooler operating temperatures for reduced power loss and increased cost savings.

In the Box

  • ASUS RS500-E9-RS4 Intel Xeon C621 16 DIMM DDR4 Hot-swap Drives Rack Optimized Server
