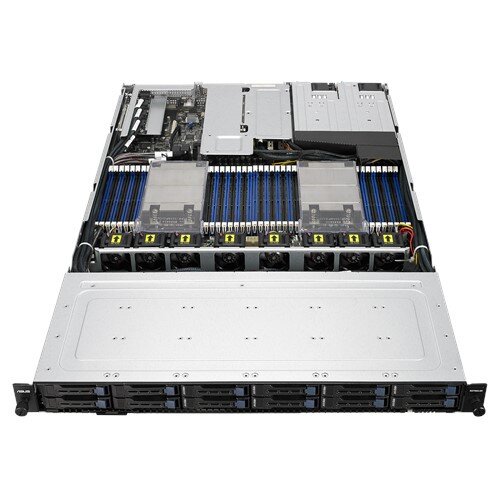

RS700A-E9-RS12 fits up to 12 2.5-inch storage drives in a compact 1U form factor. With support for multiple drive configurations, including eight NVMe and four SATA drives, four NVMe and eight SATA drives, or four NVME and eight SAS drives with an optional ASUS PIKE II card, RS700A-E9-RS12 provides storage flexibility for a wide range of applications.
RS700A-E9-RS12 provides numerous expansion slots to support additional storage and networking configurations, including a PCIe 3.0 x16 slot for a 4-NVMe adapter card, two PCIe 3.0 x8 slots for ASUS PIKE II HBA/RAID and 2-NVMe adapter cards, and an OCP Mezzanine x16 slot for a high-speed networking card.
Dual M.2 slots supports either SATA 6Gb/s or PCIe 3.0 x4 with 32Gb/s bandwidth to enable fast data transfers. The OS can be installed on an M.2 SSD, speeding up system load times and eliminating the need to use one of the 2.5-inch storage drive bays.
RS700A-E9-RS12 supports up to 32 DDR4-2666 DIMMs for up to 4TB of RAM. An integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.
RS700A-E9-RS12 features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses:
RS700A-E9-RS12 features ASUS-exclusive thermal radar technology with temperature sensors on front panel and key components such as CPU, NVMe SSD, and OCP cards. This design provides internal and external temperature monitoring and enables dynamic fan curve adjustment, bringing fan power consumption drop by up to 20% and reducing TCO for non-stop operation such as data center.
