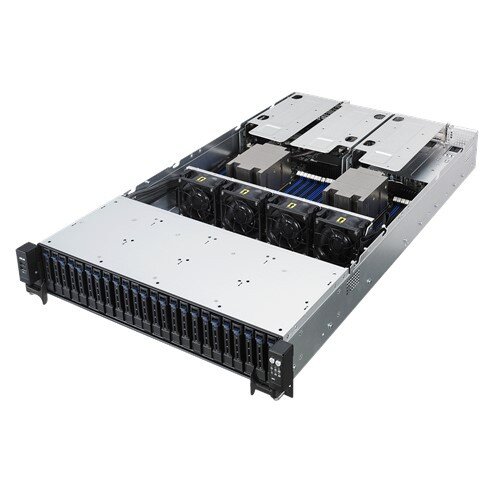

Discover ASUS RS720A-E9-RS24-E New Generation Performance with Massive Expandability Server

By: ASUS

Model: RS720A-E9-RS24-E

Sku: GOREEF2XH9

Availability: Out of stock New

Availability: Out of stock

  • Processor / System Bus:AMD EPYC 7000 Series
  • Generation: E9
  • Memory:Maximum up to 4096GB LR-DIMM 3DS
  • Expansion Slots: 6 x PCI-E x16 (Gen3 x8 link) or 3 PCI-E x16 (Gen3 x16 link), FH, HL
  • Storage: 24 x SATA3 6Gb/s ports
  • Drive Bays: 24 x 2.5" hot-swap drive bays
  • Networking: 1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN
  • Graphic: Aspeed AST2500 with 64MB VRAM
  • Form Factor: 2U
  • Power Supply: 1+1 Redundant 800W/1200W 80 PLUS Platinum Power Supply
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Brand new AMD EPYC platform design

ASUS RS720A-E9-RS24-E is built on the brand-new AMD EPYC platform to deliver incredible server performance. With up to 32 cores per CPU and up to 128 threads in a single 2U server, RS720A-E9-RS24-E packs incredible power in minimal space. 32 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.

8 + 1 expansion slots

ASUS RS720A-E9-RS24-E features seven full-height PCIe 3.0 x16 slots (x8 mode). Six of these slots can be paired together to enable three PCIe 3.0 x16 mode configurations. RS720A-E9-RS24-E also comes with one low-profile PCIe 3.0 x16 slot (x16 mode) and one OCP Mezzanine 2.0 slot (x16 mode) for OCP LAN cards. With its flexible expandability, RS720A-E9-RS24-E fits a wide range of storage and networking applications, and provides high scalability in a 2U server.

User-friendly and energy-efficient design

RS720A-E9-RS24-E features numerous user-friendly design features that simplify server maintenance. Two M.2 slots that accommodate 22110-size SSDs for additional storage options. The server's Q-code is visible from the outside of the case to make diagnosing issues easier and more convenient. A tool-less rack rail kit is included for easy server installation and removal, and a tool-less, hot-swappable fan makes for faster and simpler maintenance. RS720A-E9-RS24-E also features an energy-efficient design that eliminates the power-sharing board for reduced power consumption and operation costs.

Complete remote server management

With an onboard ASMB9-iKVM, ASUS RS720A-E9-RS24-E enables remote out-of-band management via IPMI (Intelligent Platform Management Interface). Additionally, the all-new ASUS Control Center software provides a centralized server management solution with comprehensive control over IT environments and reduced IT operation costs.

In the Box

  • ASUS RS720A-E9-RS24-E New Generation Performance with Massive Expandability Server
