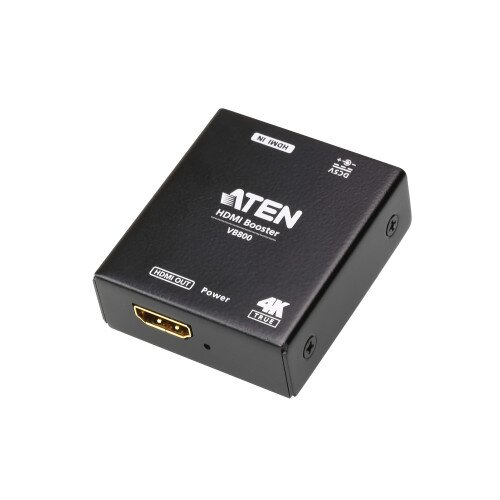

ATEN True 4K HDMI Booster (4K 10m)
ATEN True 4K HDMI Booster (4K 10m) Display Gallery Item 1
ATEN True 4K HDMI Booster (4K 10m) - 2 Display Gallery Item 2
ATEN True 4K HDMI Booster (4K 10m) - 3 Display Gallery Item 3
ATEN True 4K HDMI Booster (4K 10m) - 4 Display Gallery Item 4
ATEN True 4K HDMI Booster (4K 10m) - 5 Display Gallery Item 5

ATEN True 4K HDMI Booster (4K 10m) - Shop Now and Save!

By: ATEN

Model: VB800

Sku: V53ELLUWCH

Be the first to review this product

Sign up for price alert

$119.99

Availability: In Stock In Stock

New

  • Superior video quality – True 4k resolutions of 4096 x 2160 @ 60 Hz (4:4:4) video and standard 1080p (1920 x 1080 @ 60 Hz)
  • HDMI (3D, Deep Color, 4K)
  • Max. Data Rate 18 Gbps (6 Gbps Per Lane)
  • HDMI and HDCP 2.2 compatible
  • Supports up to True 4K resolutions when cascaded up to 10 levels
  • - Up to 10 m True 4K transmission distance (max. 5 m on the input side and 5 m on the output side)
  • - Up to 20 m 1080p transmission distance (max. 10 m on the input side and 10 m on the output side)
  • A single unit can be powered from the source device
  • Supports HDR10+
  • Plug-and-play – No software installation required
  • Rack mountable
  • * Longer distance transmission is allowed with lower data rates and/or higher quality cable.
  • Video Input:
  • Interfaces: 1 x HDMI Type A Female (Black)
  • Max. Distance: 5M at 4096x2160@60Hz (4:4:4)
  • Video Output:
  • Interfaces: 1 x HDMI Type A Female (Black)
  • Max. Distance: 5M at 4096x2160@60Hz (4:4:4)
  • Video:
  • Max. Bandwidth: 600 MHz
  • Max. Resolutions / Distance: Up to 10M at 4K@60 Hz (4:4:4); Up to 20M at 1080p@60Hz
  • Max. Data Rate: 18Gpbs(6 Gbps Per Lane)
  • Compliance: HDMI, HDCP 2.2 Compatible
  • Connectors: Power: 1 x DC Jack
  • Power Consumption: DC5V:0.99W:5BTU
  • Environmental:
  • Operating Temperature: 0 - 40°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0 - 80% RH, Non-Condensing
  • Physical Properties: Housing: Metal
  • Carton Lot: 10 pcs
Quantity:
  • Add to Wishlist
  • Add to Compare

The VB800 is a True 4K HDMI booster providing a solution for long distance transmission. The HDMI booster reliably extends True 4K signals and can be cascaded up to 10 levels, guaranteeing ultimate color and image quality. The VB800 is HDMI compliant and supports all HDMI-enabled devices. The booster can be rack mounted, offering excellent flexibility for managing both work and home settings.

In the Box

  • ATEN True 4K HDMI Booster (4K 10m)
  • Power Adapter
  • Rack Mount Kit
  • User Instructions
