ATEN USB-C Travel Dock with Power Pass-Through - Shop Now and Save!

By: ATEN

Model: UH3238

Sku: 4CXGKF8B0B

$69.99

Availability: In Stock In Stock

New

  • 5-in-1 travel dock that includes one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port
  • Supports USB PD 3.0 for charging up to 92W via USB-C PD power adapter – power profiles include 5V, 9V, 15V, 20V
  • Supports DP 1.4 Alt mode with up to 4K (3840 x 2160) @ 60Hz for superior video output
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
  • Plug and Play – no drivers needed
  • Works with all major operating systems: Windows®, macOS X, iPad Pro (USB-C), and Android
  • Compatible with Thunderbolt™3 (USB-C)
  • Compact, lightweight design for mobile workstation
  • Apple M1 chip compatible
  • Computer Connections: 1
  • Connectors:
  • Computer: USB 3.2 Gen 1 Type-C
  • Device: 1 x USB 3.2 Gen 1 Type-A female supports BC 1.2 (Max. output 5V, 7.5W)*, 1 x USB 3.2 Gen 1 Type-A female (Max. output 5V, 4.5W)*, 1 x USB 3.2 Gen 1 Type-C female (Max. output 5V, 12.5W)* *a. 2 x USB-A ports share total 5V, 9W when UH3238 powered by external USB-C PD power adapter, *b. 2 x USB-A and 1 x USB-C ports share total 5V, 7.5W when UH3238 powered by iPad via USB-C, . *c. 2 x USB-A and 1 x USB-C ports share total 5V, 12.5W when UH3238 powered by PC via USB-C. (@5V,3A bus-powered)
  • Video Output: 1 x HDMI Female (Black)
  • Audio: 1 x 3.5mm stereo 4-pole microphone and headphone jack
  • Power: 1 x USB Type-C Female (supports USB 3.2 Gen 1 Data transfer)* *Support Power Delivery 3.0 for laptop charging up to 92W, power profiles include 5V, 9V, 15V, 20V (additional USB-C PD power adapter needed)
  • Video Resolution: 3840 x 2160@60Hz* * To get max bandwidth, upstream should support standard DP1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP1.2 Alt mode supported upstream, the max resolution of HDMI is 4k@30Hz due to bandwidth limitation
  • Power Consumption: DC5V:8WBTU
  • System Requirements Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer, iPadOS 13.1 and above, iPad Pro (USB-C), Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode
  • Environmental:
  • Operating Temperature: 0–40°C
  • Storage Temperature: -20–60°C
  • Humidity: 0–80% RH, Non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare

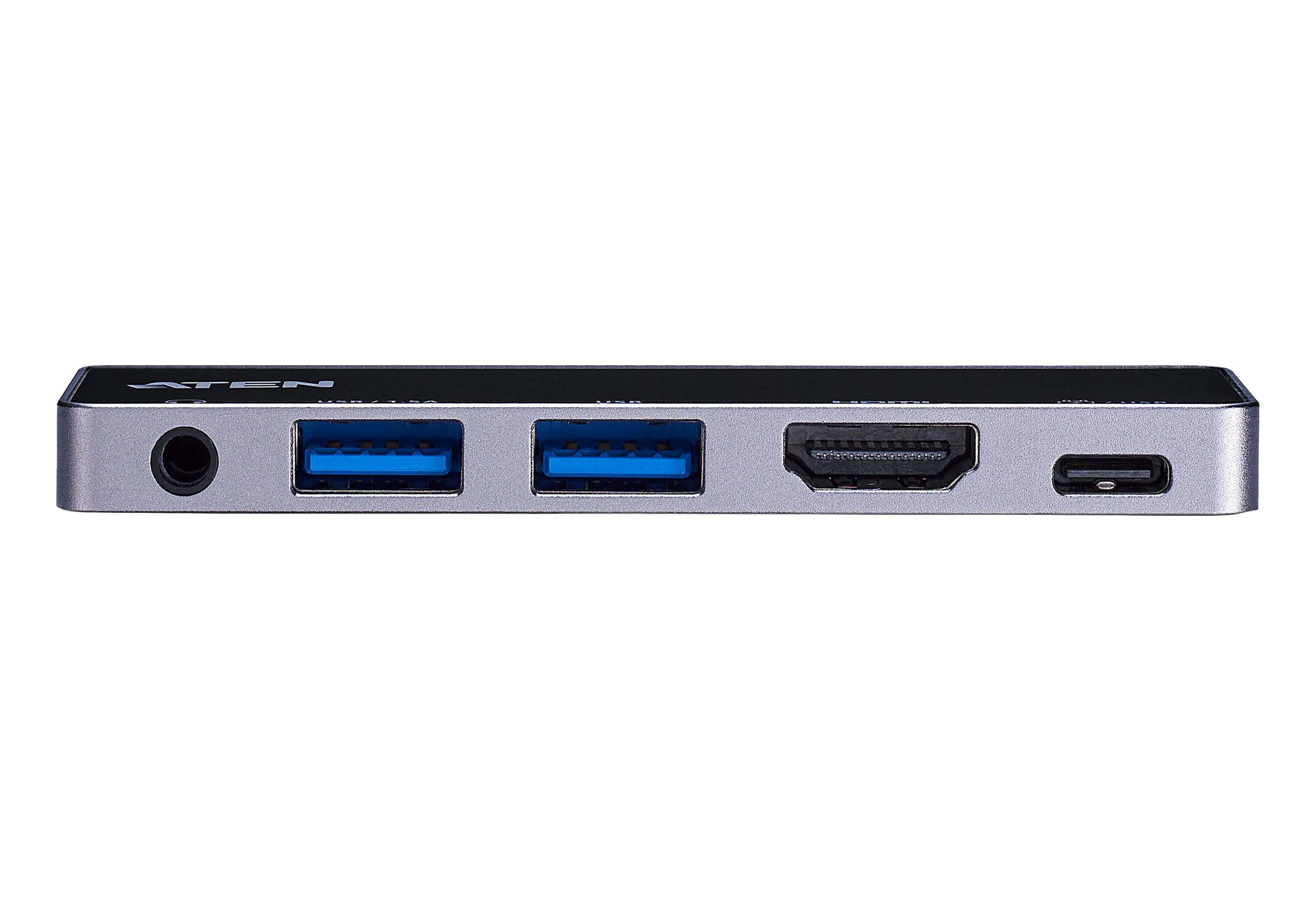

Designed and made to be a portable and versatile connectivity solution, the UH3238 USB-C Travel Dock with Power Pass-Through contains 5 essential ports – one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port – to provide connectivity and power supply for users that travel and require mobile office scenarios. The Thunderbolt 3 and USB 3.2 Gen 1- compatible interface guarantees superior data transmission speed up to 5 Gbps. With the support for up to 4K HDMI (3840 x 2160 @ 60Hz), the device allows users to multitask at stunningly realistic UHD resolution. The UH3238 boasts a plug-and-play design and is compatible with all major operating systems (Windows, macOS X, iPadOS, and Android). Weighing at just 44g, it is a compact, yet competent, and ideal data and power transmission solution for every mobile workstation ecosystem.

5-in-1 Ultra-Portable Travel Dock

The ATEN UH3238 USB-C Travel Dock provides an uncompromising mobile experience, giving all your USB-C mobile devices portable access to multiple media devices. With its pocket size, you can travel lighter with this ultra-portable dock and make the most of your mobile devices.

Universal Design. Made for USB-C Mobile Devices

The Travel Dock is specifically designed for any USB-C device, such as an Android tablet, iPad Pro, smartphone, Windows laptop, and MacBook with universal compatibility.

Stunning 4K@60Hz HDMI Display

Extends your viewing workspace with a single monitor for crystal-clear resolution, up to 4K@60Hz, for on-the-go presentations, conference calls, and video streaming.

Restores 3.5mm Audio Jack

The 3.5mm audio jack restores wired headphones connectivity to your mobile devices. You can once again enjoy high-quality audio with your wired headphones.

Type-C 92W PD and 5Gbps Data Transfer

The USB-C port supports 92W power delivery providing full-speed pass-through charging for your Windows laptop, MacBook, Android tablet, iPad Pro, or smartphone, while also supporting standard 5Gbps data transfer.

One Travel Dock for Massive Expansion

In the Box

  • ATEN USB-C Travel Dock with Power Pass-Through
  • User Instructions
