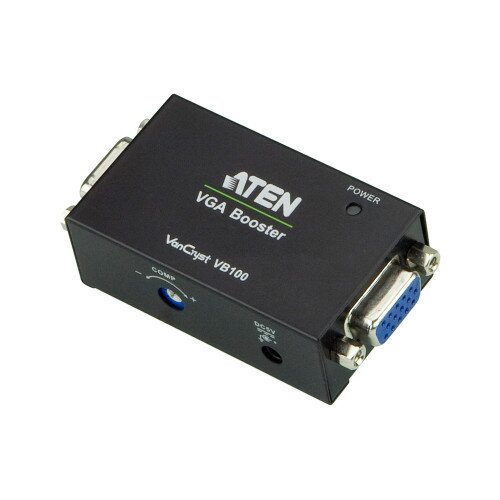

ATEN VGA Booster (1280 x 1024 70m) - Shop Now and Save!

By: ATEN

Model: VB100

Sku: EUZYMG34NC

$74.99

Availability: In Stock In Stock

New

  • Long distance transmission – up to 230 feet (70 m)
  • Adjustable video compensation – manually adjust signal strength to compensate for distance
  • Superior video quality – up to 1920 x 1200 100 feet(30 m); 1280 x 1024 230 feet (70 m)
  • Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
  • Supports wide screen formats
  • Supports hot-plugging
  • Compact housing
  • LED indication of power status and source device
  • Plug-and-play – no software installation required
  • Video Input:
  • Interfaces: 1 x HDB-15 Female (Blue)
  • Impedance: 75 Ω
  • Video Output:
  • Interfaces: 1 x HDB-15 Female (Blue)
  • Impedance: 75 Ω
  • Video:
  • Max. Bandwidth: 300 MHz
  • Max. Resolutions / Distance: Up to 1920 x 1200@30m; 1280 x 1024@70m
  • Connectors: Power: 1 x DC Jack
  • Power Consumption: DC5V:0.63W:3BTU
  • Environmental:
  • Operating Temperature: 0 - 50°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0 - 80% RH, Non-Condensing
  • Physical Properties: Housing: Metal
  • Carton Lot: 10 pcs
Quantity:
  • Add to Wishlist
  • Add to Compare

The VB100 VGA Booster amplifies the VGA signal from a source device and transmits it to a display up to 230 feet (70 m) away. The VGA booster extends the display distance without any signal loss; to bring you a crystal clear video display at a longer distance. The VB100 is built with a compact housing design for easy installation and manual gain control to improve image quality at different distances. The VB100 can be powered from the VGA source and has a built-in LED indicator for power. The VB100 supports hotplugging and requires no software forinstallation, making it an easy, compact, and affordable solution to extend your VGA display.

In the Box

  • ATEN VGA Booster (1280 x 1024 70m)
  • Power Adapter
  • User Instructions
