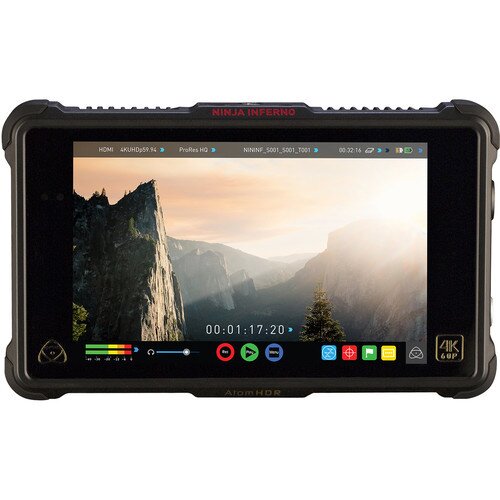

Atomos Ninja Inferno Digital Video Recorder

By: Atomos

Model: ATOMNJAIN1

Sku: 92YP6S3M59

$1,046.99

Availability: In Stock In Stock New

  • Construction: High quality lightweight ABS Polycarbonate for durability & portability, Built-in armor protection
  • Pulldown removal: 24/25/30pSF > 24/25/30p (2:2 pulldown), 60i > 24p (3:2 pulldown)
  • 4K UHD downscaling: Yes - Loop-out and playback
  • Operating power: 10 - 33W
  • Compatible batteries: NP-F series and supporting accessories
  • Input voltage (battery): 6.2V to 16.8V
  • Battery time (based on 2 x 7.4V batteries): 5200mAh - up to 1.5hrs (monitor & record 4K 30p), 7800mAh - up to 2.2hrs (monitor & record 4K 30p)
  • DC In: 1 x DC in (6.2 - 16.8V)
  • Continuous power Patent pending: Primary-secondary battery system, Change batteries without losing power, Loop batteries continuously
  • Audio In/Out (48kHz PCM Audio): HDMI: 2 or 8ch 24-bit, camera dependent, Audio: 2ch balanced XLR analog in/out, Dynamic range >90dB, Max signal level +24dBu, Max analog gain +52dB, 48V Phantom Power for Mic
  • Remote Start/Stop: HDMI: Auto HDMI Trigger: Supported Protocols - Canon, Sony, Atomos Open Standard, Other: LANC control - Slave
  • Touchscreen: Size: 7.1”, Resolution: 1920 x 1200, PPI: 325, Aspect ratio: 16:9 native, Color Gamut: REC709 HDTV, Look up table (LUT) support: 3D LUT (.cube format), Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3, Technology; SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit
  • HDMI to HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120, 2160p 24/25/30/50/60
  • Playback: Playlist / Genlock / LTC: Yes / No / No, CDNG (Recorded content): N/A, ProRes (Recorded content): All recorded files can playback. Playback in slow motion >=100fps, DNxHR / DNxHD (recorded content): All recorded files can playback. Playback in slow motion >=100fps
  • Supported Log formats: Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog
  • Supported Gamuts: Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema / BT2020 / DCI P3 / DCI P3+, Panasonic V Gamut, Arri Alexa Wide Gamut
  • Bit depth: 10-bit (8+2 FRC)
  • Brightness: 1500nit (+/- 10% center)
  • HDR input (PQ/HLG), HDR output (PQ/HLG): Yes / Yes, Yes / Yes
  • Video Input/Loop Out: HDMI: 1 x HDMI (2.0), Signal: Uncompressed true 10-bit or 8-bit 422 (camera dependent)
  • Video Output (Play Out): HDMI: 1 x HDMI (2.0), Signal: Uncompressed true 10-bit or 8-bit 422 (playback file dependent)
  • Pre-roll record: Yes (HD 8s, 4K 2s)
  • Meta data tagging: Yes (10 tags available)
  • Supported media: 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives
  • Master caddy dock: 2.5” SATA to USB 2.0/3.0
  • Supported applications: Supported Applications FCPX/FCP7+ / Media Composer, 5.0+ / Premiere 5.5+, EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /Autodesk Smoke 2015
  • XML support: FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools
Quantity :

Gaming devices

PC/Xbox/Playstation

The Ninja Inferno records from any HDMI source, including Gaming PC's and consoles, in high frame rate HD and up to 4k 60p. Recording in high bit rate ProRes fast tracks the efficiency in editing to speed up the turnaround time for distribution to the internet and by capturing everything in 10-bit the high quality gaming graphics are preserved and text overlays in editing more seamless. Playback at Live events is possible to larger 4K or HD screens and the advanced controls including playlist generation and slow motion will ensure the crowd feels every crash, punch and explosion.

Grade & Edit

Mac/PC/Laptop & Desktop

The Ninja Inferno is equally adept in the editing suite as it is in the field with the recorded files dropping directly onto the timeline of all the major NLE editing and grading software with the HDMI input capable of accepting HDR signals to make the Ninja Inferno an unbelievably affordable HDR reference monitor for portable or in studio color grading.

4K60 Cameras

Panasonic GH5/Sony FS7/Panasonic DVX200

The Ninja Inferno unlocks the professional capability of 4Kp60 10-bit cameras, bypassing the internal recording limitations and taking full advantage of the sensor by recording to the camera's maximum color accuracy, color resolution and dynamic range. Monitor and Record HDR or Rec709 up to 4:2:2 10-bit as Log high bitrate Apple ProRes or Avid DNxHR.

4K DCI Cameras

Panasonic GH4/Panasonic GH5/Sony FS7

Apart from being an obvious companion for 4Kp60 cameras like the GH5, the Ninja Inferno is the world’s first HDMI monitor-recorder to accept 4K DCI signals from cameras like the Panasonic GH5/GH4/DVX200/HCX1000/UX180/HCX1, Sony FS7/Z100 and the JVC LS300. Support for the 4096 DCI standard unlocks cinema recording from these 4K video & mirrorless DSLRs.

4Kp30 / HDp60 / HDp30 cameras

A7s/5DMKIII/A7rII

The Ninja Inferno not only delivers the ultimate solution for 4Kp60 cameras today, it of course also is a great monitor-recorder match for 4K 30p and HD cameras. Delivering pristine ProRes recording, HDR monitoring of Log signals, XLR audio monitoring, a 1500 nit daylight viewable screen and also giving you the peace of mind of having a future proof solution for years to come.

LATEST CONNECTIVITY IN A RUGGED DESIGN

Power, Video & Audio that won't let you down

The rugged case with built-in armor houses an arsenal of professional connectivity including full size HDMI 2.0 for signals up to 4K 60p, a HDMI output for playback or play-out to a view finder or other monitors, a hot swappable dual battery system for continuous power backed up with DC mains connectivity, auto HDMI start/stop recording trigger from selected Canon, Sony, Panasonic and Nikon cameras and even conversion of interlace video from your camera to progressive with built-in 3:2 and 2:2 pulldown.

RECORD THE BEST IMAGE POSSIBLE TODAY, ASSASINATE MPEG

4K60p 10-bit Pro-Res & DNxHR

Recording 4K 60p within the camera might seem enough but recording with the wrong codec restricts flexibility in post and even risks having your footage technically rejected. Ninja Inferno records direct from the sensor as full individual frames just like film to 4K 60p Apple Pro-Res or Avid DNxHR with 10-bit color information and precise yet efficient 4:2:2 color encoding.

XLR FOR YOUR DSLR

Professional Audio Monitor & Recorder

Monitor and record up to 8ch of embedded HDMI 2.0 24bit digital audio. Don't be restricted by the limited audio on most HDMI cameras, truly upgrade to professional levels. We've added an optional 48V stereo XLR breakout cable so you can connect and power external microphones for balanced analogue audio. Audio control is simple with dedicated meters and menus to select channels for recording/monitoring and adjustments for frame delay and gain.

THE ULTIMATE MONITOR. RECORDING FOR FREE.

10bit color, 10+ stops dynamic range, 1920 x 1200 resolution

We have created the ultimate monitor through end-to-end custom engineering of all components. It starts with a 1920x1200 resolution LCD panel, we add 10-bit processing in highlights and equivalent 12-bit in blacks. This is achieved through the AtomHDR engine honed from Log algorithms of every camera maker to give the ultimate brightness and color representation. Finally the custom Atomos-built backlight with the highest quality precision LEDs means the 1500nits can be utilized for High Bright Rec709 or HDR at 10+ stops.

HDR MADE SIMPLE, INCLUDED FOR FREE

Vibrant, Natural images for maximum creativity

As a creative professional you must always be ahead of the curve - today that means HDR at 4Kp60. Ninja Inferno delivers the simplest, most cost effective and technically superior HDR workflow. Go HDR today by setting your camera to Log, enabling the powerful AtomHDR engine to expose vibrant natural HDR video & then grade and edit with confidence on any Mac or PC using the Ninja Inferno as your portable grading monitor.

HIGH BRIGHT FOR REC709 OUTDOOR SHOOTING

1500nit bright, daylight viewable monitor

The 7" 1920 x 1200 monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 1500nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it a great choice for gimbals, Steadicam and director’s monitors, delivering a crisp 4K image without the bulk and viewing angle restrictions of a sun hood.

TRUST WHAT YOU SEE

Calibrate for accurate color, Scopes for accurate exposure and focus

All monitors drift in color over time, which is why all high end monitors have calibration. We've partnered with calibration leader X-Rite to allow their i1DisplayPro to calibrate the Ninja Inferno.

With peace of mind on the color front, simply tap the screen to bring up focus peaking, 2:1/1:1 zoom, Zebra, False Color, Frame guides, SMPTE Safe Area, Waveform, RGB parade, Vectorscope, Anamorphic desqueeze and a flexible 3D LUT implementation to upload your own LUTs as .cube files.

PLAYBACK REVIEW WITH CLIENTS & CREW

Onboard playback and play-out to larger HDR or Rec709 monitors

By combining a recorder and monitor, directors and clients can review shots away from the camera complete with playback control, XML tagging for favorite collation, play list generation and even play out to larger SDR or new & readily available HDR TV's in PQ or HLG. We do all the engineering for you in AtomOS, converting Log to PQ or HLG seamlessly completing your camera to TV pipeline.

CHOOSE THE SSD TO SUIT YOUR WORKFLOW

Media solutions that are affordable, time saving and convenient

The Master Caddy system is our secret weapon for recording media flexibility. High capacity and widely available 2.5" SSD's provide an affordable solution for long recording times, G-Technology have a custom Atomos caddy that integrates directly into their EV series of Raid and desktop solutions and the Angelbird 4KRAW series integrates heat sinks and a release grip into a custom Atomos caddy for high frame rate and CDNG recording.

In the Box

  • Atomos Ninja Inferno Digital Video Recorder
  • Master Caddy II
  • Power Supply
  • Travel Case
