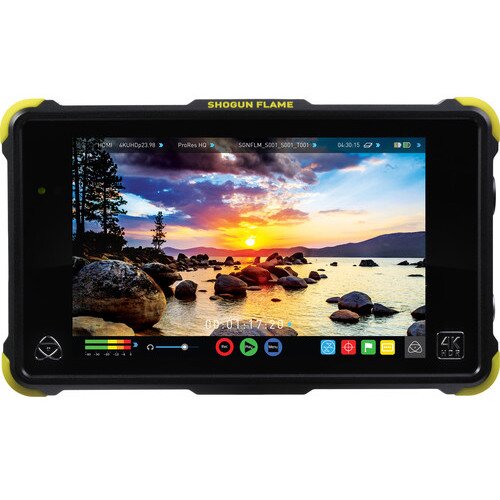

Change the way you shoot with Log. Record Log in 4K or HD ProRes/DNxHR from video or raw cameras with the Shogun Flame's HDMI or SDI inputs and thanks to the AtomHDR engine's combination of 10+ stops dynamic range, 1500nit brightness and 10-bit color processing you can monitor the HDR Log with vivid, natural colors.
Cameras with Log output (S-Log2, S-Log3, C-Log, V-Log etc) already have the 10+ stops of dynamic range needed for High Dynamic Range (HDR). Be at the forefront of the HDR revolution sweeping the industry by having a field monitor capable of resolving HDR in the field as you see it in Post Production and record the original Log image direct from the sensor for HDR grading in post production.
Not all scenes call for HDR Log recording. In situations that don't call for 10 stops of dynamic range, use the intensity of the 1500nit panel to monitor traditional standard dynamic range (SDR/Rec709) video at high brightness for outdoor monitoring.
Simply pick the right mode, HDR or High Bright SDR, and get busy setting up your shot on the premium 7" display boasting 10-bit processing, 1920x1200 resolution, 325ppi pixel density, optional calibration to overcome natural LCD color drift and an arsenal of precision video setup tools for perfect shots every time.
The HDMI connection is compatible up to 4Kp30 and the SDI connection has compatibity up to 12G ensuring you are future proofed as the SMPTE standard updates. The built-in bi-directional conversion allows HDMI cameras to be integrated into a SDI workflow or connect SDI cameras with HDMI flat panels.
Output the 4K/HD Raw from select cameras (Sony FS7/FS700 & Canon C300MKII/C500) over SDI and record direct to 10-bit 4:2:2 ProRes or DNxHR. Capturing Raw using the Shogun Flame is a free feature with no additional licensing costs and lets you immediately take advantage of our affordable media platform bypassing the need for proprietary cards and media.
Recording 4K and high frame rate HD within the camera might seem enough but unless you record with the right codec you're restricting flexibility in post and even run the risk of having your footage technically rejected. Along with the high pixel density of 4K, the Shogun Flame records higher resolution 10-bit color information, more precise yet efficient 4:2:2 color encoding and to visually lossless, edit-ready codecs like Apple ProRes or AVID DNxHR. Now you're recording professionally, capturing full individual frames just like film and opening up more creativity in post and grading
Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (Focus peaking, 2:1/1:1 zoom, Zebra, False Color, Frame guides, SMPTE Safe Area, Waveform, RGB parade, vectorscope) along with a flexible 3D LUT implementation (use built-in LOG to Rec.709 Video or upload .cube files) and options for anamorphic de-squeeze monitoring.
Our patented continuous power system pioneered on our HD products are back on the 4K range. The hot swappable dual battery system that automatically swaps to the second battery when power is low, coupled with the blazingly fast battery charger and dual 4-cell batteries (optional accessories) means that continuous power in the field is all but assured.
The Shogun Flame has professional audio to match professional video. Monitor up to 8ch of embedded HDMI audio, up to 12ch of SDI audio or use the included XLR breakout cable to connect with external microphones for balanced analogue audio with 48V phantom power. Audio control is simple with dedicated meters and menus to select channels for recording/monitoring and adjustments for frame delay and gain.
Outside of 10-bit 4:2:2 ProRes/DNx, the Ninja Flame adds recording functionality not found in other recorders. Trigger start/stop recording over HDMI from select Canon, Sony, Panasonic, Nikon cameras. Convert interlace video from your camera to progressive on the fly with built-in 3:2 and 2:2 pulldown and gain advanced functionality like Pre-roll (continuous cache recording to never miss the action) and Time lapse to maximise your creativity.
Our built-in armor enhances protection & airflow whilst the raft of accessories (2 x NP series 4-cell batteries, fast battery charger, USB3 docking station, XLR breakout cable, Lanc cable, DC to D-Tap cable, 5 x Master Caddy cases, DC adapter & HDR sun hood) and the premium HPRC flight case ensures you're ready to hit the field immediately.
