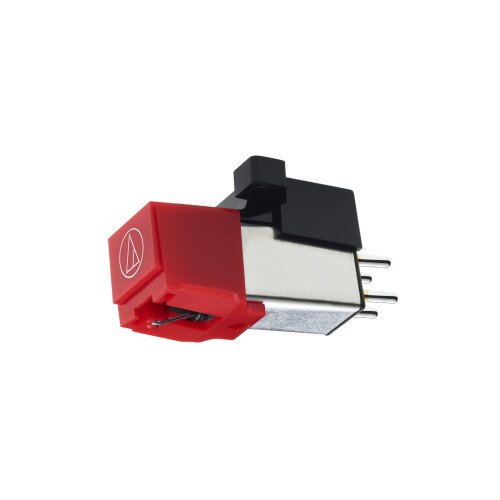

Audio-Technica AT91R Cartridge
Audio-Technica AT91R Cartridge Display Gallery Item 1

Audio-Technica AT91R Cartridge - Shop Now and Save!

By: Audio-Technica

Model: AT91R

Sku: KN33WZ5NXP

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Frequency Response: 20-20,000 Hz
  • Channel Separation: 18 (dB at 1 kHz)
  • Vertical Tracking Angle: 20°
  • Vertical Tracking Force: 1.5-2.5 g (2.0 g standard)
  • Stylus Construction: Bonded round shank
  • Recommended Load Impedance: 47,000 ohms
  • Coil Impedance: 2.8 k ohms (1 kHz)
  • DC Resistance: 410 ohms
  • Coil Inductance: 400 mH (1 kHz)
  • Recommended load capacitance: 100 to 200 pF
  • Output: 3.5 mV (1 kHz, 5 cm/sec.)
  • Channel Balance: 2.5 dB (1 kHz)
  • Stylus Shape: 0.6 mil conical
  • Cantilever: Aluminum pipe
  • Mount: Half-inch
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

This 0.6 mil conical cartridge fits half-inch mount turntables. It features durable dual-magnet design, excellent channel separation and low distortion for outstanding tonal quality.

In the Box

  • Audio-Technica AT91R Cartridge
