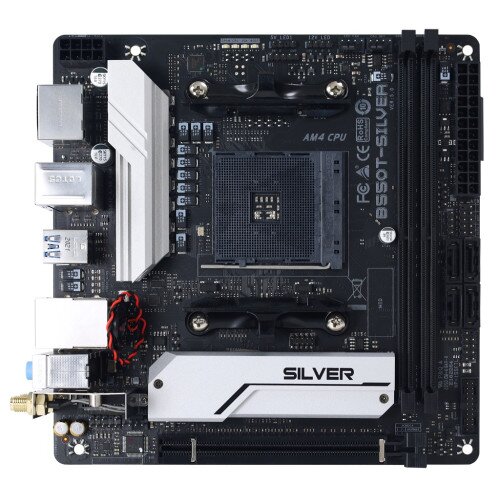

BIOSTAR B550T-SILVER Racing Motherboard
BIOSTAR B550T-SILVER Racing Motherboard Display Gallery Item 1
BIOSTAR B550T-SILVER Racing Motherboard - 2 Display Gallery Item 2
BIOSTAR B550T-SILVER Racing Motherboard - 3 Display Gallery Item 3

BIOSTAR B550T-SILVER Racing Motherboard - Shop Now and Save!

By: BIOSTAR

Model: B550T-SILVER

Sku: CIWEFLCJM5

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Chipset: AMD B550
  • INTEGRATED VIDEO: By CPU model, Supports DX12, Supports HDCP
  • LAN: Realtek RTL8125B, 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
  • AUDIO CODEC: ALC897, 7.1 Channels, High Definition Audio, Hi-Fi (Front)
  • USB: USB 3.2 (Gen2) Type-C port (1 on rear I/O), USB 3.2 (Gen2) port (1 on rear I/O), 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers), 2 x USB 2.0 ports (2 via internal headers)
  • EXPANSION SLOT: PCIe 4.0/ 3.0 x16 Slot, Supports PCIe 3.0 x16/ 4.0 x16 mode with AMD Ryzen processors, Supports PCIe 3.0 x16 mode AMD Ryzen with Radeon Vega Graphics processors, According to different CPUs will have different speeds, PCIe 4.0 speed only for AMD Ryzen 3rd Gen Matisse and 4th Gen Vermeer CPUs
  • H/W MONITORING: CPU / System Temperature Monitoring, CPU / System Fan Monitoring, Smart / Manual CPU Fan Control, System Voltage Monitoring
  • OS SUPPORT: Supports Windows 10(64bit) / 11(64bit), Biostar reserves the right to add or remove support for any OS with or without notice.
  • FEATURES: VIVID LED DJ, A.I FAN, PCIe M.2 4.0, LED ROCK ZONE
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • INTERNAL I/O: 4 x SATA III (6.0Gb/s) Connectors, M.2 (E Key) Socket Supports 2230 type Wi-Fi & Bluetooth module, USB 2.0 Header (each header supports 2 USB 2.0 ports), USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports), 8-Pin Power Connector, 24-Pin Power Connector, CPU Fan Connector, CPU water cooling connector (CPU_OPT), System Fan Connector, Front Panel Header, Front Audio Header, Internal Stereo Speaker Header, Clear CMOS Header, LED Header (5V), LED Header (12V), M.2 (E key) Wi-Fi card is not provided
  • REAR I/O: 2 x WIFI Antenna Ports, PS/2 Mouse/ Keyboard Port, HDMI Port, DP Port, LAN port, USB 3.2 (Gen2) Type-C Port, USB 3.2 (Gen2) Port, 4 x USB 3.2 (Gen1) Ports, 3 x Audio Jack
  • STORAGE: Total supports M.2 socket and 4 x SATA III (6Gb/s) ports, 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10, M.2 (M Key) Socket, Supports M.2 Type 2280 SSD module, Supports PCIe 4.0 x4 (64Gb/s)/ 3.0 x4 (32Gb/s) - NVMe/ AHCI & SATA III (6.0Gb/s) SSD, M.2 (M Key) Socket (M2_PCIEG4_64G_SATA) The bandwidth is depended on CPU. Supports PCIe 4.0 x4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse and 4th Gen Vermeer CPUs
  • MEMORY: 4th Gen AMD Ryzen Processors (Vermeer/ Future CPUs), Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133, 3rd Gen AMD Ryzen Processors (Matisse CPUs), Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133, 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs), Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133, 2 x DDR4 DIMM Memory Slots, Max. Supports up to 64 GB Memory, Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module
  • CPU SUPPORT: Socket AM4 support AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Future) processors, Support for future AMD Ryzen processors with BIOS update
  • Supports AMD Ryzen 3rd Gen (Matisse / Renoir) and 4th Gen (Vermeer) processors
  • AMD B550 single chip architecture
  • Supports 2-DIMM DDR4-4933+(OC)/4800(OC)/4600(OC) /4400(OC)/4000(OC)/3800(OC)/3600(OC) /3200/2933 /2667/2400/2133 up to 64GB maximum capacity
  • Supports USB 3.2 Gen2
  • Supports PCIe M.2 4.0 (64Gb/s)
  • Supports HDMI 2.1 4K resolution
  • Supports WiFi 6 module(No WiFi 6 card included)

In the Box

  • BIOSTAR B550T-SILVER Racing Motherboard
  • 4 x SATA Cable
  • I/O Shield
  • DVD Driver
  • i antenna accessories
  • Quick Guide
