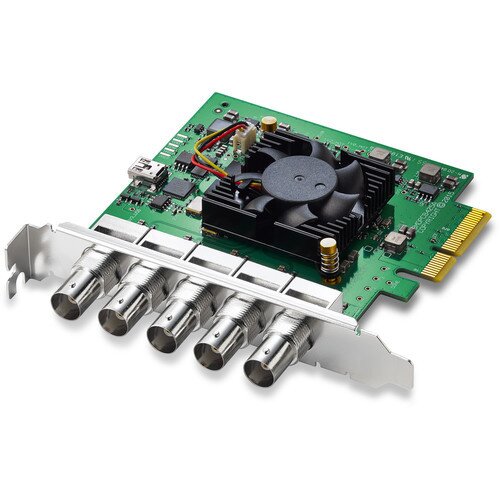

Blackmagic Design DeckLink Duo 2 Capture Card
Blackmagic Design DeckLink Duo 2 Capture Card Display Gallery Item 1

Blackmagic Design DeckLink Duo 2 Capture Card - Shop Now and Save!

By: Blackmagic Design

Model: BDLKDUO2

Sku: 87Z48Q5CL8

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Operating Temperature: 5° to 40 ° C (32° to 104° F)
  • Power Consumption: 10 Watts
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10, both 64-bit, Linux
  • SDI Video Inputs: 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
  • SDI Video Outputs: 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
  • SDI Audio Inputs: 16 channels embedded in SD and HD.
  • SDI Audio Outputs: 16 channels embedded in SD and HD.
  • Sync Input: Tri-Sync or Black Burst.
  • Computer Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
  • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
  • Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
  • Color Space: REC 601, REC 709
  • SDI Video Sampling: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
  • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Featuring 4 independent 3G-SDI connections, DeckLink Duo 2 is a PCI Express capture and playback card that supports SDI formats in SD and HD up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!

In the Box

  • Blackmagic Design DeckLink Duo 2 Capture Card
