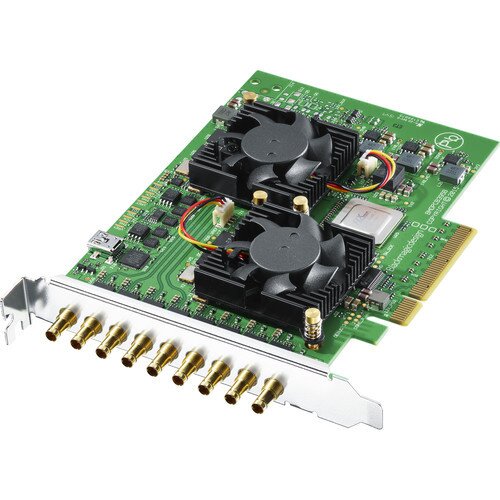

Blackmagic Design DeckLink Quad 2 Capture & Playback Card
Blackmagic Design DeckLink Quad 2 Capture & Playback Card Display Gallery Item 1

Discover Blackmagic Design DeckLink Quad 2 Capture & Playback Card

By: Blackmagic Design

Model: BDLKHDEXTR4KHDMI2

Sku: J8Z223CL3G

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • SDI Video Inputs: 8 x bi-directional 12-bit SD/HD independently configurable as either Input or Output.
  • SDI Video Outputs: 8 x bi-directional 12-bit SD/HD independently configurable as either Output or Input.
  • SDI Audio Inputs: 16 channels embedded in SD and HD.
  • SDI Audio Outputs: 16 channels embedded in SD and HD.
  • Sync Input: Tri-Sync or Black Burst.
  • Computer Interface: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots.
  • Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
  • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
  • Color Space: REC 601, REC 709.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10, both 64-bit, Linux
  • Power Consumption: 22 Watts
  • Operating Temperature: 5° to 40° C (32° to 104° F)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

DeckLink Quad 2 features 8 independent SDI capture and playback channels in a single card! Fully compatible with the previous 4 channel model, this new model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad 2 allows each of the 8 3G-SDI BNC connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.

In the Box

  • Blackmagic Design DeckLink Quad 2 Capture & Playback Card
