Blackmagic Design DeckLink Quad HDMI Recorder Capture Card
Blackmagic Design DeckLink Quad HDMI Recorder Capture Card Display Gallery Item 1

Discover Blackmagic Design DeckLink Quad HDMI Recorder Capture Card

By: Blackmagic Design

Model: BDLKDVQDHDMI4K

Sku: 7NSG1GU1KQ

Be the first to review this product

Sign up for price alert

$584.99

Availability: In Stock In Stock

New

  • HDMI 2.0b Video Inputs: 4
  • HDMI Audio Inputs: 8 Channels embedded in SD/HD/UHD/4K.
  • Computer Interface; PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
  • Operating Systems: Mac 11.1 Big Sur, Mac 12.0 Monterey or later, Windows 10, 64-bit, Windows 11, Linux
  • Power Consumption: 23 W
  • Operating temperature: 5° to 40° C (41° to 104° F)
  • Storage Temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards : 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
  • HDMI Color Precision : 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all modes. 8-bit YUV 4:2:0 in Ultra HD and 4K DCI 50p and 60p. 8‑bit RGB 4:4:4 in all DVI modes.
  • Color Space : REC 601, REC 709, REC 2020
  • HDMI Video Sampling : 4:4:4, 4:2:2 and 4:2:0
  • HDMI Configuration : HDMI 2.0b supports Deep Color and HDR.
  • Multiple Rate Support : HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes.
Quantity:
  • Add to Wishlist
  • Add to Compare

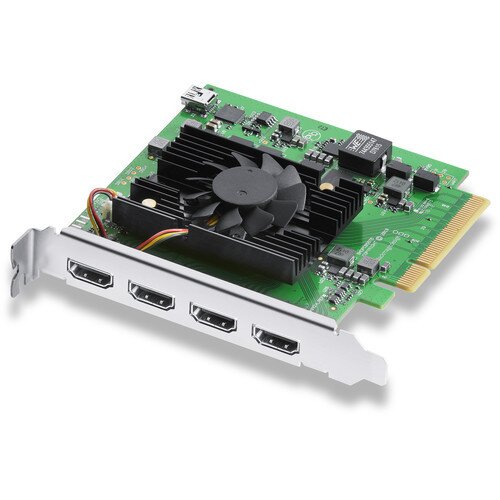

DeckLink Quad HDMI Recorder is a high performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K and even computer formats, all at the same time! Featuring 4 independent HDMI 2.0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real time computer game capture, streaming and more!

In the Box

  • Blackmagic Design DeckLink Quad HDMI Recorder Capture Card
