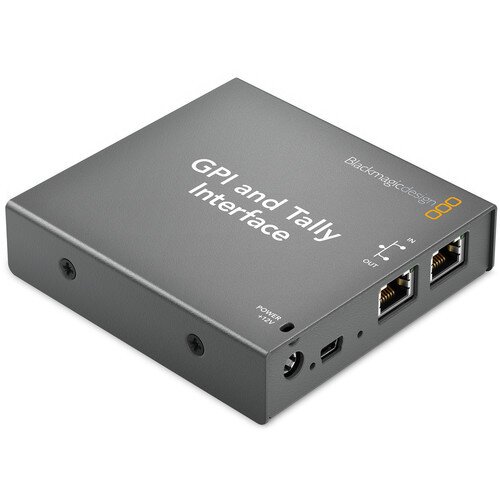

Discover Blackmagic Design GPI & Tally Interface for ATEM Production Switcher

By: Blackmagic Design

Model: SWTALGPI8

Sku: 85ZLASW12X

Be the first to review this product

Sign up for price alert

$531.99

Availability: In Stock In Stock

New

  • Operating Temperature: 0° to 40° C (32° to 104° F)
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Contact Closure: 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs.
  • Outputs: Mechanical relay contact closure to ground. Max 30V at 1A.
  • Ethernet: 10/100 BaseT with loop through for connecting to other ethernet enabled equipment.
  • Computer Interface: 1 x USB 2.0 high speed interface for configuration and firmware updates.
  • Inputs: Optical isolators triggered by connection to ground. Max 5V at 14mA.
Quantity:
  • Add to Wishlist
  • Add to Compare

Add tally to your ATEM switcher with Blackmagic Design's GPI and Tally Interface! With 8 contact closure tally outputs, you can send a tally signal to your cameras, replay machines and monitors so everyone knows which camera is 'on-air'! If you need more tally outputs, simply connect multiple GPI and Tally Interfaces together because it connects via Ethernet to your ATEM production switcher.

In the Box

  • Blackmagic Design GPI & Tally Interface for ATEM Production Switcher
  • 12 V Power Supply
