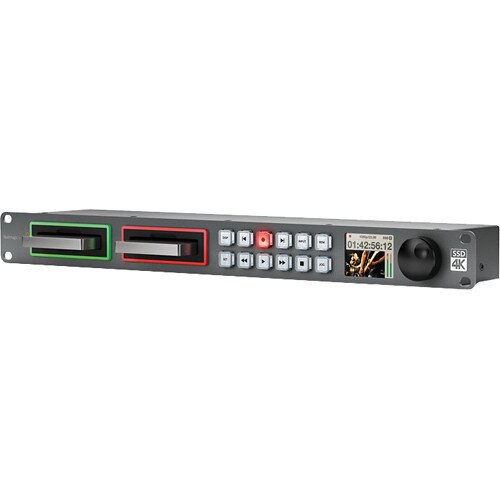

Blackmagic Design HyperDeck Studio Pro
Blackmagic Design HyperDeck Studio Pro Display Gallery Item 1
Blackmagic Design HyperDeck Studio Pro - 2 Display Gallery Item 2

Blackmagic Design HyperDeck Studio Pro - Shop Now and Save!

By: Blackmagic Design

Model: HYPERD/ST/PRO

Sku: LEJH7W8B5G

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • SDI Video Inputs: 1
  • Timecode Connection: 1 x XLR in and 1 x XLR out.
  • SDI Video Outputs: 4, Single Link or Quad Link.
  • SDI Audio Inputs: 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
  • SDI Rates: 270Mb, 1.5G, 3G, 6G.
  • SDI Audio Outputs: 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
  • HDMI Video Inputs: 1 x HDMI type A connector including Ultra HD 4K support.
  • HDMI Video Outputs: 1 x HDMI type A connector including Ultra HD 4K support.
  • HDMI Audio Inputs: 8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
  • HDMI Video Outputs: 1 x HDMI type A connector including Ultra HD 4K support.
  • HDMI Audio Outputs: 8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
  • Analog Video Inputs: Y, B-Y, R-Y
  • Analog Video Outputs: Y, B-Y, R-Y
  • Reference Input: Tri-Sync or Black Burst.
  • Recorder Configuration: Front panel configurable or USB 2.0 high speed interface.
  • Analog Audio Outputs: 2 x XLR connectors for professional balanced analog audio.
  • Computer Interface: 1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control.
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • Video Sampling: 4:2:2
  • Audio Sampling: Television standard sample rate of 48kHz and 24-bit
  • Media: 2 x SSD for SD, HD and Ultra HD recording.
  • Media Format: Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
  • Media Type: SATA-II or SATA-III solid state disc.
  • Built in Control Panel: 12 buttons for transport and menu control, 2.2 inch color display.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Display: Built in LCD for video, audio and timecode monitoring and menu settings.
  • Physical Installation: 1 rack unit size. Less than 7 inches deep.
  • Power Supply: 1x Internal 100 - 240V AC.
  • Operating Temperature: 5° to 40° C (41°to 104° F)
  • Storage Temperature: -20° to 45° C (-4° to 113° F), Relative Humidity:0% to 90% non-condensing
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

HyperDeck Studio Pro is the ultimate in compatibility and technology, featuring a more advanced design that includes 6G-SDI so you get SD, HD and Ultra HD formats, plus HyperDeck Studio Pro includes a wide range of video and audio connections in both analog and digital so you get the widest compatibility with older and newer equipment. Get SD, HD up to 1080p60 and Ultra HD up to 2160p30 all in the one deck! Also includes 6G-SDI and Quad Link SDI, HDMI 4K, analog component, balanced analog audio and AES/EBU audio compatibility. You even get UltraScope software for live scopes!

In the Box

  • Blackmagic Design HyperDeck Studio Pro
  • Built-In Power Supply
