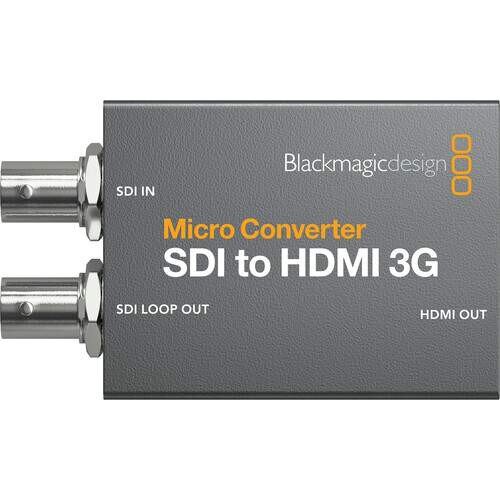

Blackmagic Design Micro Converter SDI to HDMI 3G wPSU
Blackmagic Design Micro Converter SDI to HDMI 3G wPSU Display Gallery Item 1
Blackmagic Design Micro Converter SDI to HDMI 3G wPSU - 2 Display Gallery Item 2
Blackmagic Design Micro Converter SDI to HDMI 3G wPSU - 3 Display Gallery Item 3
Blackmagic Design Micro Converter SDI to HDMI 3G wPSU - 4 Display Gallery Item 4

Blackmagic Design Micro Converter SDI to HDMI 3G wPSU Price Worldwide

By: Blackmagic Design

Model: CONVCMIC/SH03G/WPSU

Sku: OXHWMYLGUA

Be the first to review this product

Sign up for price alert

$83.99

Availability: In Stock In Stock

New

  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
  • SDI Video Rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition.
  • SDI Color Precision: 4:2:2
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically detects SD, HD and level A or B for 3G‑SDI.
  • HDMI Video Standards: 525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
  • HDMI Color Precision: 4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
  • HDMI Color Space: YUV
  • Power Supply: +5V universal power supply included with international socket adapters for most countries.
  • Power Consumption: 1.6 W
  • Operational Voltage Range: 4.4V to 5.25V DC
  • Operating Temperature: 0° to 40° C (32° to 104° F)
  • Storage Temperature: -20° to 60° C (-4° to 140° F)
  • Relative Humidity: 0% to 90% non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare

This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.

Connections

SDI Video Inputs

1 x SD,HD,or 3G-SDI.

SDI Video Outputs

1 x SDI loop out.

HDMI Outputs

HDMI Type A out.

Multi Rate Support

Auto-detection of SD or HD.

Updates,Configurations,and Power

USB Type‑C

Standards

SDI Video Standards

525i59.94 NTSC,625i50 PAL

Settings Control

Via MacOS and Windows software utility connected by USB.

Software

Internal software upgrade via USB.

In the Box

  • Blackmagic Design Micro Converter SDI to HDMI 3G wPSU
