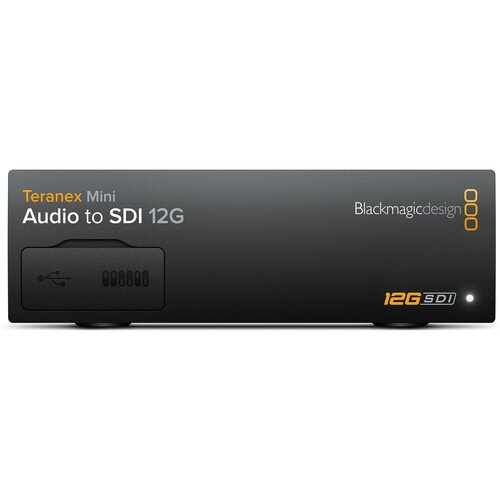

Blackmagic Design Teranex Mini Audio to SDI 12G Converter
Blackmagic Design Teranex Mini Audio to SDI 12G Converter Display Gallery Item 1
Blackmagic Design Teranex Mini Audio to SDI 12G Converter - 2 Display Gallery Item 2
Blackmagic Design Teranex Mini Audio to SDI 12G Converter - 3 Display Gallery Item 3

Discover Blackmagic Design Teranex Mini Audio to SDI 12G Converter

By: Blackmagic Design

Model: CONVNTRM/CB/AUSDI

Sku: 8H7N9EFC6Q

Be the first to review this product

Sign up for price alert

$515.99

Availability: In Stock In Stock

New

  • SDI Video Inputs: 12G-SDI SD/HD/2K/4K auto switching.
  • SDI Video Outputs: 12G-SDI output.
  • Embedded Audio Support: 16 channels.
  • Optical Audio Input: S/PDIF Signal with TOSLINK Connector.
  • Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
  • Updates and Configuration: USB or Ethernet.
  • Reclocking: Yes
  • Digital Audio Inputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
  • Analog Audio Inputs: 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.
  • SDI Video Rates: SDI video connections are auto switching between standard definition SDI, 1.5G‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI.
  • 2K Video Standards: 1080p23.98, 1080p24, 1080p25, 1080PsF23.98, 1080PsF24, 1080PsF25
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
  • Software Control: Mac and Windows software upgrade via USB and Ethernet.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Operational Voltage Range: 90 - 240V AC
  • Power Consumption: 16 Watts
  • Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
  • Operating Temperature: 0° to 40°C (32° to 104°F)
Quantity:
  • Add to Wishlist
  • Add to Compare

Embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection. Take audio from devices such as audio mixers, iPods and analog decks and embed it into SDI video connections for use with SDI routers and decks.

In the Box

  • Blackmagic Design Teranex Mini Audio to SDI 12G Converter
