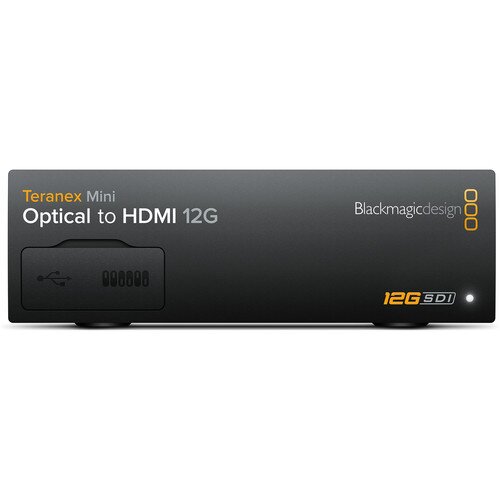

Blackmagic Design Teranex Mini Optical to HDMI 12G Converter
Blackmagic Design Teranex Mini Optical to HDMI 12G Converter Display Gallery Item 1
Blackmagic Design Teranex Mini Optical to HDMI 12G Converter - 2 Display Gallery Item 2

Discover Blackmagic Design Teranex Mini Optical to HDMI 12G Converter

By: Blackmagic Design

Model: CONVNTRM/MA/OPTH

Sku: HYQM2PBI56

Be the first to review this product

Sign up for price alert

$515.99

Availability: In Stock In Stock

New

  • SDI Video Inputs: 12G-SDI SD/HD/2K/4K auto switching.
  • SDI Video Outputs: 12G-SDI output.
  • Embedded Audio Support: 16 channels.
  • Optical Audio Input: S/PDIF Signal with TOSLINK Connector.
  • Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
  • Updates and Configuration: USB or Ethernet.
  • Reclocking: Yes
  • Digital Audio Inputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
  • Analog Audio Inputs: 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.
  • SDI Video Rates: SDI video connections are auto switching between standard definition SDI, 1.5G‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI.
  • 2K Video Standards: 1080p23.98, 1080p24, 1080p25, 1080PsF23.98, 1080PsF24, 1080PsF25
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
  • Software Control: Mac and Windows software upgrade via USB and Ethernet.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Operational Voltage Range: 90 - 240V AC
  • Power Consumption: 16 Watts
  • Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
  • Operating Temperature: 0° to 40°C (32° to 104°F)
Quantity:
  • Add to Wishlist
  • Add to Compare

Now you can convert from SDI and SMPTE optical fiber to HDMI! Simply insert the SMPTE optical fiber module of your choice to get video and embedded audio over massive distances using 3G, 6G, or 12G-SDI optical fiber! You get professional 12G-SDI and XLR connections, a down converter for viewing Ultra HD sources on HD displays plus ethernet for remote admin control. The optical fiber SFP module is sold separately so you can purchase the SMPTE compatible 3G-SDI, 6G-SDI or 12G-SDI SFP module to suit your workflow. You can even add an optional Smart Panel to add LCD monitoring and push button controls to your Teranex Mini!

In the Box

  • Blackmagic Design Teranex Mini Optical to HDMI 12G Converter
