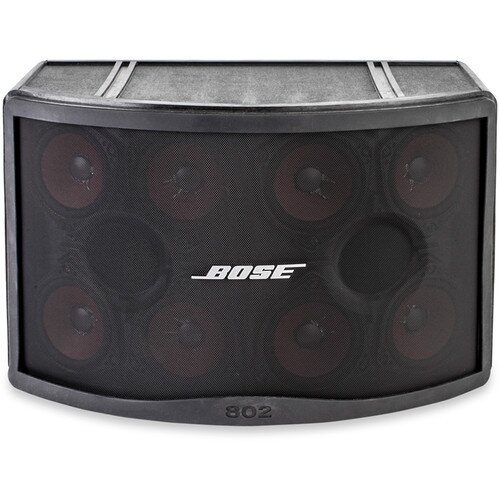

Bose Professional Panaray 802 Series IV Sound-Reinforcement Loudspeaker
Bose Professional Panaray 802 Series IV Sound-Reinforcement Loudspeaker Display Gallery Item 1
Bose Professional Panaray 802 Series IV Sound-Reinforcement Loudspeaker - 2 Display Gallery Item 2
Bose Professional Panaray 802 Series IV Sound-Reinforcement Loudspeaker - 3 Display Gallery Item 3

Discover Bose Professional Panaray 802 Series IV Sound-Reinforcement Loudspeaker

By: Bose

Model: 739058-0110

Sku: O27LOHFG5S

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Frequency Range (–10 dB): 52 Hz - 15 kHz
  • Recommended High-Pass Protection Filter: 55 Hz with minimum 12 dB / octave filter
  • Nominal Coverage Pattern: 120° H x 100° V
  • Loudspeaker EQ: Active EQ required for optimal performance
  • Overload Protection: Power limiting circuit (non-fused; automatic reset)
  • Power Handling, long-term continuous: 240 W, 300 W, Power Handling, peak: 960 W, 1200 W
  • Sensitivity (SPL / 1 W @ 1 m): 92 dB
  • Calculated Maximum SPL @ 1 m: 116 dB 117 dB
  • Calculated Maximum SPL @ 1 m, peak: 122 dB 123 dB
  • Full-range drivers: 8 x Bose 4.5” (114 mm) full-range cone transducers
  • Nominal Impedance: 8 ohms
  • Enclosure Material: Mineral-reinforced HDPE, Grille: Powder-coated steel grille
  • Environmental: Outdoor per IEC 529 IP55, Connectors: 2 x Neutrik NL4 wired parallel
  • Suspension / Mounting: 8 x M8 threaded inserts (2 back, 2 bottom, 4 sides)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • Full-Range-Driver Array eliminates tweeters and crossovers for unsurpassed reliability in harsh environments and vocal clarity
  • 8 x Bose 4.5” full-range drivers for legendary reliability
  • 120° x 100° Articulated Array design covers a very wide area, which can reduce the number of loudspeakers required
  • 52 Hz - 15 kHz frequency range eliminates need for subwoofers for moderate full-range music levels
  • 123 dB peak SPL for sound-reinforcement and foreground music
  • Rugged, lighweight enclosure with threaded inserts for easy installations
  • Weather-Rated design for indoor or outdoor installations
  • Requires active equalization

The Panaray 802 Series IV installed sound-reinforcement loudspeaker features a full-range-driver array, eliminating the need for tweeters and crossovers, to provide unsurpassed reliability and vocal clarity. The Articulated Array® design, with wide 120° x 100° coverage, can reduce the number of required loudspeakers, while the 52 Hz low-frequency range can eliminate the need for subwoofers, providing a cost-effective solution for many indoor or outdoor installed sound-reinforecement applications.

In the Box

  • Bose Professional Panaray 802 Series IV Sound-Reinforcement Loudspeaker
