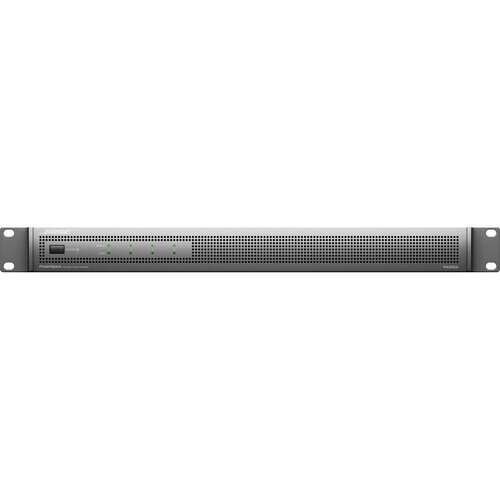

Discover Bose Professional PowerSpace P4300A Versatile Power Amplifier

By: Bose

Model: 803288-1110

Sku: RYUNPNJ992

$1,747.99

Availability: In Stock In Stock

New

  • AMPLIFICATION: Channel Separation (Crosstalk): 80 dB at 1 kHz, 65 dB at 20 kHz, Dynamic Range: 100 dB at rated power, A-weighted, Frequency Response: 20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 Ω / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V, Gain, High-Impedance: 35 dB, 70V mode / 38 dB, 100V mode, Gain, Low-Impedance: 32 dB, Maximum Peak Power, Symmetrical: 600 W, Number of Channels: 4, Power Class: Class D, Rated Power, Symmetrical: 300 W, THD+N: 0.04% at 1 kHz, 4–8 Ω, 70V/100V,
  • AUDIO INPUTS, ANALOG: Input Channels: 4 balanced, Connectors: (2) 6-pin Euroblock, Input Impedance: 10 kΩ, Maximum Input Level: 22 dBu at 14 dBu sensitivity, Sensitivity: -10 dBV, 4 dBu, 14 dBu
  • AUDIO INPUTS/OUTPUTS, DIGITAL: Channels: 8 AmpLink in, 8 AmpLink thru, Connectors: (1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru, Type: 2 × 6-pin Euroblock.
  • AUDIO OUTPUTS, ANALOG: Channels: 4, Connectors: (1) 8-terminal block
  • Colors: Gray, Cooling System: Microprocessor-controlled variable-speed fans, front-to-back air flow, Suspension/Mounting: Rack-mounting, Operating Temperature Range: 0 °C to 40 °C (32 °F to 104 °F) Rack Spaces: 1
  • COMPLIANCE: EMC: This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment.
  • ELECTRICAL: Mains Connector: IEC 60320-C14 inlet, Mains Voltage: 100–240 VAC (±10%), 50/60 Hz, AC Power Consumption: 25 W auto-standby, 570 W maximum
  • INDICATORS AND CONTROLS: Controls, Front Panel: (1) power button, Controls, Rear Panel: Mute, output attenuators, DIP switches for amplifier configuration, input selector, update port, gain/sensitivity, LED Status Indicators: (1) power/status LED, (4) input signal LEDs, (4) output limit LEDs
  • INTEGRATED DSP: DSP-Enabled: No
Quantity:
  • Add to Wishlist
  • Add to Compare

Ideal for zone-expansion applications, Bose Professional PowerSpace amplifiers enhance any premium commercial sound installation with clean, reliable power — and digital connectivity. A Bose Professional AmpLink input allows for multiple channels of uncompressed, low-latency digital audio from Bose Professional DSPs via a single Cat 5 cable. The PowerSpace P4300A provides 300 watts per channel and features versatile outputs that give you the flexibility to deliver full channel power to either low- or high-impedance loads — without bridging — and even send double power to a single zone. For premium commercial applications, PowerSpace amplifiers provide the power and performance to get the job done — pure and simple.

  • 300 watts per channel and works seamlessly with loudspeakers, DSPs, and controls to create complete commercial sound systems
  • AmpLink input for simplified multichannel digital audio connection to compatible DSPs, reducing terminations and related points of failure
  • Load-independent outputs deliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging
  • I-Share outputs deliver 2x power level by combining the current of two channels
  • Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns

In the Box

  • 2-pin Euroblock connector
  • Cat 5e cable, 3.3 ft (1 m)
  • IEC power cord
  • installation guide
  • PowerSpace P4300A
  • (10) terminal forks, 14–16 AWG
  • (2) I-Share jumpers
  • (4) 3-pin Euroblock connectors
