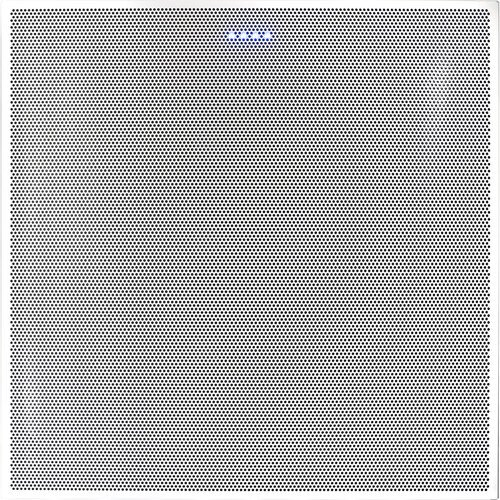

ClearOne BMA CT Ceiling Tile Beamforming Mic Array
ClearOne BMA CT Ceiling Tile Beamforming Mic Array Display Gallery Item 1
ClearOne BMA CT Ceiling Tile Beamforming Mic Array - 2 Display Gallery Item 2
ClearOne BMA CT Ceiling Tile Beamforming Mic Array - 3 Display Gallery Item 3

ClearOne BMA CT Ceiling Tile Beamforming Mic Array - Shop & Save Big!

By: ClearOne

Model: 910-3200-205

Sku: Q55R5RSSLE

Be the first to review this product

Sign up for price alert

$3,954.99

Availability: In Stock In Stock

New

  • Power Selection Switch: Type: Slide Switch: Slide toward P-Link to power device by P-Link, Slide toward PoE to power device by PoE Injector
  • LED: 4 LED indicators on one end of the unit: Mute/Un-mute configuration with 8 color options, two blink patterns and warning indications
  • Configuration & Administration Software: Pro CONSOLE Software
  • 24 microphones: 1 Channel In (Uses P-Link channels or C-Link channels for speakers, no input channels in CP2), Number of Beams: Two patterns, either 5 or 6 beams, Polar Pattern: Custom, Frequency Response: 150Hz - 16kHz, +/- 3dB, Dynamic Range: 150Hz - 16kHz, > 70dB
  • Amplifier Output: Type: 5.08mm Black Header, Male, Phoenix type Euroblock, Audio: 2 Channels, Output Power: 2x10W Max, 8 load, Frequency Response: 20Hz - 22kHz +10dBu, +/- 0.5dB, THD + Noise: 20Hz - 22kHz +10dBu, 1W, < 0.2%, Dynamic Range: 20Hz - 22kHz +20dB, > 102dB, with 20kHz digital low pass filter, Crosstalk: Channel to Channel, stimulus at +20dBu to receptor 10W output 8 load, 20Hz - 22kHz, < 60dB
  • Configuration: Beam enable/disable, Acoustic Echo Cancellation (AEC) on/of, Noise Cancellation (NC) on/of, Filters: All Pass, Low Pass, High Pass, Notch, PEQ, Automatic Level Control (ALC) on/of, Gain adjust, Mute on/off, Auto gate/Manual gate
  • Power Consumption: 100-240VAC, 50/60Hz 9.1 Watt Typical without speaker amp 38W at max power 1kHz (2 x 10W)
  • Thermal: 130 BTU/Hr at max power
  • Operating Temperature: 14? F/-10? C to 104? F/40? C ambient temperature
Quantity:
  • Add to Wishlist
  • Add to Compare
  • Built in 2x10 Watt into 8-ohm power amplifier conveniently drives loudspeakers.
  • Daisy-chain up to three ceiling tiles via P-Link for larger conference setups - for simpler wiring and longer distances compared to networked "home run" connections.
  • Single workflow for configuration using Pro Console software. No need to program separate components: Ethernet switch, BMA CT, Dante controller, and DSP mixer.
  • Supports three different ceiling grid types: 24-inch, 600 mm, and 625 mm; as well as hard-ceiling mounts.
  • Adaptive steering (think of it as smart switching) - no need to adjust individual beams - for impeccable room coverage.
  • Each ceiling tile microphone array supports long distance P-Link mode with 200 m / 650 ft between tiles, for a total cable reach of 600 m / 1950 ft
  • ClearOne's BMA technology is protected by at least a dozen patents and pending patent applications.
  • It's all about the ClearOne architecture!

In the Box

  • ClearOne BMA CT Ceiling Tile Beamforming Mic Array
