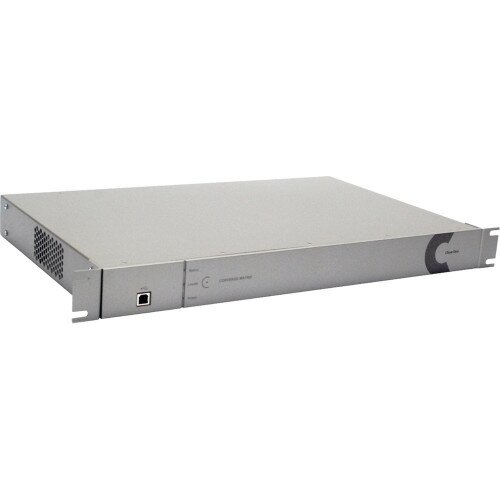

ClearOne Converge Matrix 128 EX - Shop Now and Save!

Model: 910-3000-004

Availability: Out of stock

100-240V AC, 50/60 HZ, AC inlet
14°F/-10°C to 122°F/50°C
Sample rate: 48kHz/96kHz
Primary & Secondary network: Gigabit Ethernet RJ45 connector
Expansion card: Up to additional 256 x 256 bidirectional 48kHz
Audio channels: Up to 256x256 bidirectional 48kHz per pair of primary & secondary Dante ports
Ethernet: 10/100 Ethernet Network Port RJ45, auto negotiation
Device Identification: 8 pin DID switch
Serial: RS-232, DB9 Female, Serial Command Protocol Only, 9600/19200/38400/115200 Baud; 8 bits, 1 stop, no parity
Control/Status: DB25 Female, 8 Open Collector Outputs, 12 Active High Inputs, 5VDC Power Source
Push-on mini-terminal block
Frequency Response: 20Hz – 22kHz +4dBu +/- 0.5dBu
Equivalent Input Noise (EIN): 20kHz BW, max gain, Rs=150Ω, -126dBu
Dynamic Range: 20Hz – 20kHz 0dB, >105dB
Input Impedance (Mic/Line balanced line to ground): 2.2kΩ, 1%
Nominal Input Level: Adjustable -56dB to 0dB, 7dB step coarse gain
Maximum Input Level: -65dBu to 20dBu
Phantom Power: Impedance: 6.81kΩ, 48V
Output Impedance (Mic/Line balanced): 95Ω, 1%
Output Level: 0dBu(Nominal), 20dBu (Max), -40dBu (Selectable)
