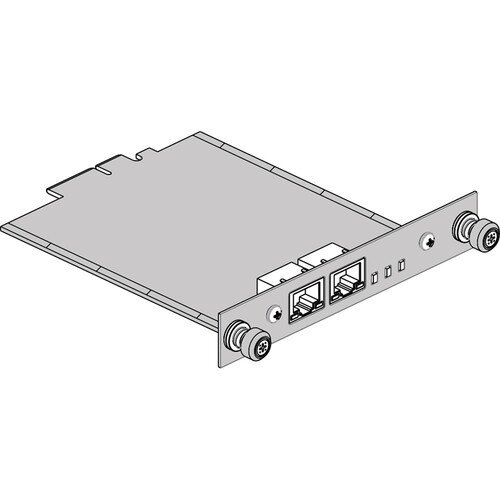

ClearOne Converge Matrix 64 Expansion Card
ClearOne Converge Matrix 64 Expansion Card Display Gallery Item 1

ClearOne Converge Matrix 64 Expansion Card - Shop Now and Save!

By: ClearOne

Model: 910-3000-007

Sku: T7A4JI77CZ

Be the first to review this product

Sign up for price alert

$1,560.99

Availability: In Stock In Stock

New

  • 100-240V AC, 50/60 HZ, AC inlet
  • 14°F/-10°C to 122°F/50°C
  • Sample rate: 48kHz/96kHz
  • Primary & Secondary network: Gigabit Ethernet RJ45 connector
  • Expansion card: Up to additional 256 x 256 bidirectional 48kHz
  • Audio channels: Up to 256x256 bidirectional 48kHz per pair of primary & secondary Dante ports
  • Ethernet: 10/100 Ethernet Network Port RJ45, auto negotiation
  • Device Identification: 8 pin DID switch
  • Serial: RS-232, DB9 Female, Serial Command Protocol Only, 9600/19200/38400/115200 Baud; 8 bits, 1 stop, no parity
  • Control/Status: DB25 Female, 8 Open Collector Outputs, 12 Active High Inputs, 5VDC Power Source
  • Push-on mini-terminal block
  • Frequency Response: 20Hz – 22kHz +4dBu +/- 0.5dBu
  • Equivalent Input Noise (EIN): 20kHz BW, max gain, Rs=150Ω, -126dBu
  • Dynamic Range: 20Hz – 20kHz 0dB, >105dB
  • Input Impedance (Mic/Line balanced line to ground): 2.2kΩ, 1%
  • Nominal Input Level: Adjustable -56dB to 0dB, 7dB step coarse gain
  • Maximum Input Level: -65dBu to 20dBu
  • Phantom Power: Impedance: 6.81kΩ, 48V
  • Output Impedance (Mic/Line balanced): 95Ω, 1%
  • Output Level: 0dBu(Nominal), 20dBu (Max), -40dBu (Selectable)
Quantity:
  • Add to Wishlist
  • Add to Compare
  • Reliable, modular, flexible
  • Expands using field upgradable Expansion Card
  • Works with all CONVERGE and any third-party Dante products
  • Offers complete network and device redundancy the ultimate in reliability
  • Comes with multiple channel sizes: 512x512, 256x256, 128x128, 64x64
  • Distributes digital audio using Dante networking technology
  • Shows matrix views based on groups/zones

In the Box

  • ClearOne Converge Matrix 64 Expansion Card
