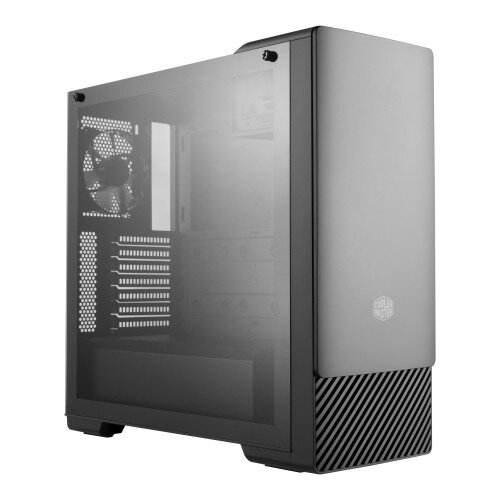

Cooler Master Masterbox E500 with ODD Computer Case
Cooler Master Masterbox E500 with ODD Computer Case Display Gallery Item 1
Cooler Master Masterbox E500 with ODD Computer Case - 2 Display Gallery Item 2
Cooler Master Masterbox E500 with ODD Computer Case - 3 Display Gallery Item 3
Cooler Master Masterbox E500 with ODD Computer Case - 4 Display Gallery Item 4
Cooler Master Masterbox E500 with ODD Computer Case - 5 Display Gallery Item 5
Cooler Master Masterbox E500 with ODD Computer Case - 6 Display Gallery Item 6
Cooler Master Masterbox E500 with ODD Computer Case - 7 Display Gallery Item 7
Cooler Master Masterbox E500 with ODD Computer Case - 8 Display Gallery Item 8
Cooler Master Masterbox E500 with ODD Computer Case - 9 Display Gallery Item 9
Cooler Master Masterbox E500 with ODD Computer Case - 10 Display Gallery Item 10
Cooler Master Masterbox E500 with ODD Computer Case - 11 Display Gallery Item 11

Cooler Master Masterbox E500 with ODD Computer Case - Shop & Save Big!

By: Cooler Master

Model: MCB-E500-KG5N-S00

Sku: AM6QH3E71V

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Materials: Steel, Plastic, Tempered Glass
  • Expansion Slots: 7
  • 5.25" Drive Bays: 1
  • 3.5" Drive Bays: 2
  • 2.5" Drive Bays: 4 (Max.6)
  • I/O Panel: 2x USB 3.0, Audio In & Out
  • Pre-Installed Fans - Rear: 120mm (Black)
  • Fan Support - Front: 2x 140mm, 2x 120mm
  • Fan Support - Top: 2x 140mm (removing ODD Bracket is required), 2x 120mm
  • Fan Support - Rear: 120mm
  • Radiator Support - Front: 280mm, 240mm, 140mm, 120mm
  • Radiator Support - Top: 240mm (w/ ODD removed), 120mm
  • Radiator Support - Rear: 120mm
  • Clearance - Cpu Cooler: 165mm
  • Clearance - PSU: 180mm/7.08"
  • Clearance - GFX: 410mm/16.1"
  • Cable Routing - Behind Motherboard Tray: 19mm / 0.74"
  • Dust Filters: Front, Top, Bottom
  • Power Supply Support: Bottom mount, ATX
  • Series: MasterBox Series
  • Size: Mid Tower
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Sliding Front Panel

Hide the I/O ports/or ODD behind the sliding front panel for a cleaner appearance.

Tempered Glass Side Panel

Showcase your build through the edge to edge tempered glass side panel.

Versatile Cooling Options

The front supports up to three 120mm or two 140mm fans and up to a 360mm radiator. The rear supports a single 120mm fan and a single 120mm radiator. Filtered ventilation on the top panel supports up to two 120mm or two 140mm fans and up to a 240mm radiator.

Main Components Clearance

The MasterBox E500 case supports CPU Coolers up to a height of 165mm, Graphics Cards up to a length of 410mm and Power Supplies up to a length of 180mm.

  • Sliding Front Panel
  • Edge to Edge Tempered Glass Side Panel
  • Top Panel Ventilation
  • Graphics Card Support up to 410mm
  • Black Coated Frame & PSU Shroud

In the Box

  • Cooler Master Masterbox E500 with ODD Computer Case
  • User Manual
