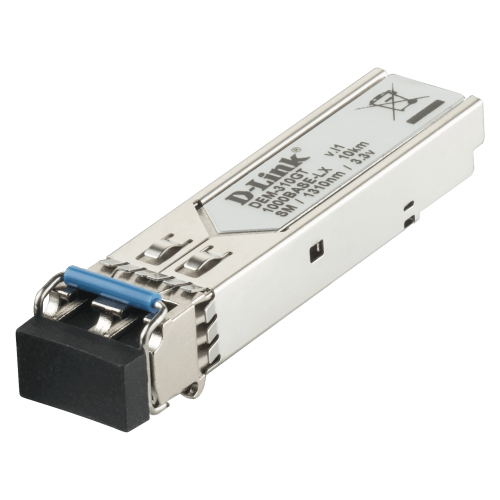

Discover D-Link 1000BASE-LX Single-Mode 10 Km LC SFP Transceiver

By: D-Link

Model: DEM-310GT

Sku: 419T2K7NRV

$59.99

Availability: In Stock In Stock

New

  • High-performance 1310 nm single-mode SFP transceiver.
  • Transceiver Type: SFP
  • Cable Type: - single-mode 9/125um fiber: reach 10km - multi-mode 50/125um fiber: reach 2km - multi-mode 62.5/125um fiber: reach 550m
  • Power: 3.3V
  • Safety: FDA/CDRH, TUV, cUL
  • Hot Pluggable: Yes
  • RoHS Compliant: Yes
  • MSA Compliant: Yes
  • Hardware version: F1
  • connector: Duplex LC Connector
  • single/bi Direction: single-direction
  • Wavelength: 1310 nm
  • Output Optical Power (TX Optical Power): MAX.: -3 dBm
  • Interface: MIN.: - 21 dBm
  • Input Optical Power (RX Optical Power): MAX.: - 3 dBm
  • Sensitivity: -21 dBm
  • Max Input Current: 300mA
  • Power Budget (MIN Power Budget): 11.5 dB
  • MAX Power Budget: 18dB
  • Heat Generated: 1.78kJ/h
  • Humidity (Operating): 10% ~ 90%
  • Operation Temperature: 0-70°C
  • Storage Temperature: -40-85°C
  • Humidity (Storage): 5% ~ 90%
  • Speed: 1Gbps
  • Compliant Standard: IEEE-802.3z 1000BASE-LX
  • Fiber Channel FC-PI standard: 100-SM-LC-L
  • Fiber Media support: Single-Mode
  • Distance: 10KM
Quantity:
  • Add to Wishlist
  • Add to Compare

High-Speed Network Transmission for Business Environments

The DEM-310GT is a high-performance 1310 nm single-mode SFP transceiver supporting full-duplex Gigabit speeds for distances of up to 10 km. The unit features a metal housing to reduce EMI and to increase durability.

Hot Pluggable

All D-Link transceivers are hot pluggable. You can connect a transceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.

Small Form Pluggable (SFP) Package

The Gigabit SFP Transceivers use the Small Form-factor Pluggable (SFP) design. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa. The SFP form factor is advantageous because it is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density.

  • Maximum distance of up to 10 km
  • Hot-pluggable
  • Single-mode fiber
  • 1000BASE-LX (IEEE 802.3z standard)
  • Duplex LC connector
  • MSA, RoHS-compliant

In the Box

  • D-Link 1000BASE-LX Single-Mode 10 Km LC SFP Transceiver
  • User Manual
