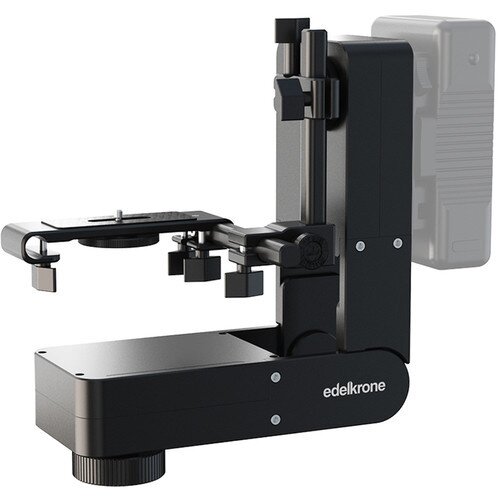

edelkrone HeadPLUS PRO Camera Mount & Clamp - Shop Now and Save!

By: edelkrone

Model: 82313

Sku: 28I1IBKYCW

Availability: Out of stock New

Availability: Out of stock

  • Mounting Options: 3/8"-16 mounting port on bottom. 1/4"-20 mounting screw on L bracket.
  • Recommended Camera Load: 20 pounds (9kg)
  • Min. step size: 0.022 degree
  • Max. speed: 360° in 20 sec
  • Number of axes: 2 (Pan & Tilt)
  • Motor type: 2 x ultra precise step motors with ultra high-res encoders.
  • Battery life: With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh), Operates 4 hours (continuously at full speed), Shoots 28800 photographs (in Time-Lapse mode), 1 Anton Bauer Digital 90 Gold Mount Battery is 93 Wh, 1 Anton Bauer Digital 90 V-Mount Battery is 93 Wh
  • Power input: V-Mount type battery, Gold Mount type battery, AC/DC adapter (NOT included)
  • Shutter trigger cable socket: 2.5 mm (shutter trigger cable sold seperately)
  • Compatibility: Slide Module, Focus Module, Laser Module, SliderPLUS PRO, SliderONE PRO, DollyPLUS and previous generation SliderPLUS, SliderPLUS PRO.
  • Mobile device connection: Bluetooth low-energy communication.
  • App. compatibility: iOS 11.0 or later & Android 5.0 or later
  • Materials: CNC machined aluminum and stainless steel components.
  • DC plug specs: Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Motorized Pan & Tilt Head with optional Focus Add-on. Includes smart object tracking with auto focusing + wireless connectivity with edelkrone motorized Sliders and Dollies.

Automatic Target Tracking

HeadPLUS can learn 3 different targets, can keep any of them in the frame and focus on them even when it's moving on edelkrone sliders and dollies. With this automatic feature, you can achieve elegant parallax shots without spending any time programming the system.

Live Target Switching

You can make a smooth transition between any of the 3 preset targets by just selecting any of them. During each transition, HeadPLUS elegantly frames the new target, focuses on it and keeps it in the frame & focus as the camera moves.

Instant Target Learning

If you add Laser Module to HeadPLUS, you can teach the position of any stationary target to the system instantly. Just aim on the target and press OK. The camera will instantly frame and focus on the target.

Can be hand-controlled

You can manually adjust the pan and tilt angle of the HeadPLUS. This way, instead of using a remote control, you can, in fact, program your camera motions with your hands. This gives an unprecedented speed to your workflow, and makes the whole process much more intuitive.

Fits in a camera bag

Despite its unprecedented features, HeadPLUS (with all of its accessories) fits in a regular size camera bag. With its unique unfolding body design, HeadPLUS can be straightened so that it fits your bag much more efficiently.

Single App to control all

edelkrone App cleverly scans the available devices in its surroundings and pairs with them automatically, giving you a single screen to control all devices together.

The interface is extremely simple.

Use the controls on the top part of the App screen to set the pose of your camera. Press and hold on any of the keypose buttons to record that pose. Use the same button to recall that pose. It’s that simple. Press 2 keyposes to put the system in loop between both keyposes.

You can adjust the speed and acceleration of the transition between keyposes. Or, you can easily create time-lapse videos by using the same keyposes.

Super easy Motion Time-Lapse Programming

Setting up a motion time-lapse is the easiest with edelkrone App. In your time-lapse videos, you can have a simple transition between two keyposes or you can convert a recorded complex camera motion into a time-lapse with a single button.

You can use edelkrone’s unique Dynamic Interval and Dynamic Step Size Technologies to introduce never-before-seen efects to your time-lapses which bend the speed of time and speed of camera motion independently of each other. Such advanced and unique features have never come together with such simplicity prior to the edelkrone App.

Super Accurate Backlash-free Gear Design

All edelkrone motorized products use the same backlash-free gear design technology for perfectly repeatable, smooth motion for even the most demanding shots. Even the most portable edelkrone devices have heavy-duty gears assuring lifetime good performance.

Ultra Silent Step Motor Driving Technology

All edelkrone motorized devices have a unique silent step motor driving technology which combines ultra precise step motor positioning ability with ultra silent operation. Step motors are perfect for precise motion control but until now their downside has been the noise they make. With edelkrone motorized devices, you will get the world’s most precise positioning with the quietest performance.

In the Box

  • edelkrone HeadPLUS PRO Camera Mount & Clamp
  • L Bracket for cameras
  • Width extenders for SliderPLUS legs
  • Link cable
  • Allen keys
