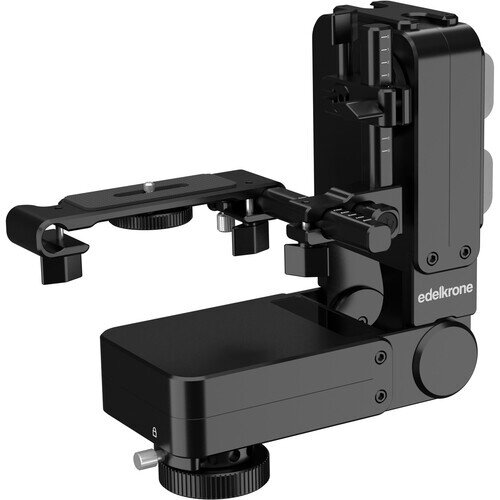

edelkrone HeadPLUS v2 Pan & Tilt Head - Shop Now and Save!

By: edelkrone

Model: EDRCX

Sku: NK0UBWQ7PP

$1,904.99

Availability: In Stock In Stock

New

  • Mounting options: 3/8"-16 mounting port on bottom. 1/4"-20 mounting screw on L bracket.
  • Min. step size: 0.022 degree
  • Max. speed: 360° in 20 sec
  • Number of axes: 2 (Pan & Tilt)
  • Motor type: x2 ultra precise step motors with ultra high-res encoders.
  • Power input: V-Mount type battery, Gold Mount type battery, LP-E6 battery, NP-F battery, AC/DC adapter (9.0V, 2A) (NOT included)
  • Shutter trigger cable socket: 2.5 mm (shutter trigger cable sold separately)
  • Can be paired with: SliderONE v2, Slide Module v3, SliderPLUS v5, SliderPLUS v5 PRO, DollyONE, DollyPLUS, FocusPLUS PRO, Laser Module, and previous generation Slide Module v2, SliderPLUS, SliderPLUS PRO
  • Mobile device connection: 2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
  • App. compatibility: iOS 11.0 or later & Android 5.0 or later
  • Materials: CNC machined aluminum and stainless steel components
  • Battery life: 28.8 Wh energy: Operates for 5 hours (continuously at full speed), Shoots 36,000 photographs (in Time-Lapse Mode) , Canon LP-E6 battery is 14.4 Wh, Sony NP-F970 battery is 47.4 Wh
Quantity:
  • Add to Wishlist
  • Add to Compare

Automatic Target Tracking & Live Target Switching

HeadPLUS v2 has the ability to learn three different stationary targets. When transitioning between targets, HeadPLUS v2 keeps each target in frame and in focus even when operating on SliderPLUS, SliderONE, JibONE, and DollyONE and DollyPLUS. You can make a live, smooth transition among any of the three preset targets by selecting your desired target through the App.

Sequencer Feature

With Sequencer feature, you can chain multiple poses one after another to create complex camera motion. Transition speed between each pose is independently adjustable. You can also make the system loop back and forth in any given order.

Can be Hand-controlled

Instead of relying on a remote control, manually adjust the pan & tilt angle of HeadPLUS v2 and program your camera motion with just your hands! This gives an unprecedented speed to your workflow and makes the entire process much more intuitive.

Add New FocusPLUS PRO for automated focus control

FocusPLUS PRO is a motorized focus controller. When used with HeadPLUS v2 on any edelkrone slider, dolly or jib, FocusPLUS PRO delivers an auto-focus feature as the camera moves closer to or further away from your locked targets. FocusPLUS PRO also works in keypose mode where you can assign different focus adjustments on individual keypose buttons and recall them when needed.

Add Laser Module to speed up target learning

Laser Module is a laser meter designed for HeadPLUS v2. Laser Module enables instant distance measurement and makes it super quick for HeadPLUS v2 to lock on stationary subjects instantly.

Add Vision Module for automatic face tracking

Vision Module, designed exclusively to attach on HeadPLUS v2 or HeadPLUS v2 PRO, will lock on your target's face and automate face tracking with live camera feed on edelkrone App. Vision Module is the ultimate add-on to complete any edelkrone ecosystem motion control setup that includes HeadPLUS v2 or HeadPLUS v2 PRO. Vision Module is coming soon!

Connects wirelessly to edelkrone Sliders, Jibs & Dollies

When HeadPLUS v2 is combined with a slider, jib or dolly, you can easily program 3-, or 4-axis camera motions. You can record never-before-seen, amazing motion time-lapses and visual effects shots with any combination you choose. The devices pair instantly in the background while using the same App or Controller to control all devices together.

Super easy time-lapse programming

Setting up a motion time-lapse is the easiest with edelkrone App. In your time-lapse videos, you can have a simple transition between two keyposes or you can convert a recorded complex camera motion into a time-lapse with a single button. You can use edelkrone’s unique Dynamic Interval and Dynamic Step Size Technologies to introduce never-before-seen effects to your time-lapses which bend the speed of time and speed of camera motion independently of each other.

In the Box

  • edelkrone HeadPLUS v2 Pan & Tilt Head
  • L-Bracket
  • Width Extender Leg Set for SliderPLUS
  • Allen Wrench Set
  • 1/4"-20 Camera Screw
  • 3/8"-16 Camera Screw
