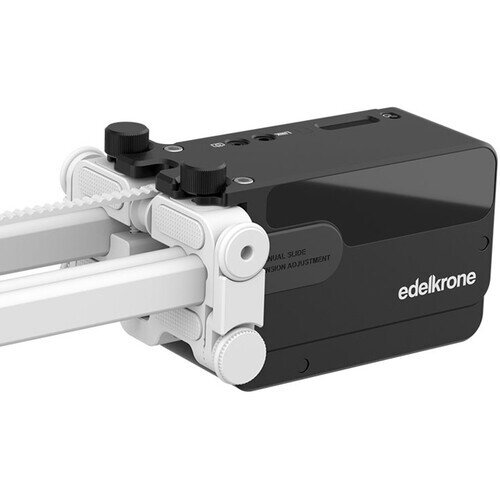

edelkrone Slide Module v3 for SliderPLUS - Shop Now and Save!

By: edelkrone

Model: EDDDX

Sku: J11W3QPCDZ

$600.99

Availability: In Stock In Stock

New

  • Incline Capacity: Up to 22.5° with 5.5 lb (2.5 kg)
  • Min. step size on tripod: 22.4 μm
  • Min. step size on ground: 11.2 μm
  • Max. speed on tripod: 2.52 in/sec (6.42 cm/sec)
  • Max. speed on ground: 1.26 in/sec (3.21 cm/sec)
  • Supported fps: All
  • Number of axes: Single (the slide motion)
  • Motor type: Step motor with ultra high-res encoder.
  • Power inputs: x2 LP-E6 type battery or x2 NP-F type battery (Batteries and battery brackets are sold separately.)
  • Battery life: With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh), Operates 2 hours (continuously at full speed), Shoots 12000 photographs (in Time-Lapse mode)
  • Shutter trigger cable socket: 2.5 mm (Shutter trigger cable is sold separately).
  • Compatibility:SliderPLUS, SliderPLUS PRO, previous generation SliderPLUS, SliderPLUS Pro, SliderPLUS X, SliderPLUS M and SliderPLUS v5 series
  • Can be paired: HeadONE (Both single and dual), HeadPLUS, HeadPLUS PRO
  • Can be controlled: edelkrone App, edelkrone controller
  • Mobile device connection: 2.4GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
  • App. compatibility: iOS 11.0 or later & Android 5.0 or later
  • Materials: CNC machined aluminum and stainless steel components, High contrast sharp OLED screen
  • DC plug specs: Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm
    • Incline Capacity: Up to 22.5° with 5.5 lb (2.5 kg)
    • Min. step size on tripod: 22.4 μm
    • Min. step size on ground: 11.2 μm
    • Max. speed on tripod: 2.52 in/sec (6.42 cm/sec)
    • Max. speed on ground: 1.26 in/sec (3.21 cm/sec)
    • Supported fps: All
    • Number of axes: Single (the slide motion)
    • Motor type: Step motor with ultra high-res encoder.
    • Power inputs: x2 LP-E6 type battery or x2 NP-F type battery (Batteries and battery brackets are sold separately.)
    • Battery life: With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh), Operates 2 hours (continuously at full speed), Shoots 12000 photographs (in Time-Lapse mode)
    • Shutter trigger cable socket: 2.5 mm (Shutter trigger cable is sold separately).
    • Compatibility:SliderPLUS, SliderPLUS PRO, previous generation SliderPLUS, SliderPLUS Pro, SliderPLUS X, SliderPLUS M and SliderPLUS v5 series
    • Can be paired: HeadONE (Both single and dual), HeadPLUS, HeadPLUS PRO
    • Can be controlled: edelkrone App, edelkrone controller
    • Mobile device connection: 2.4GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
    • App. compatibility: iOS 11.0 or later & Android 5.0 or later
    • Materials: CNC machined aluminum and stainless steel components, High contrast sharp OLED screen
    • DC plug specs: Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm
Quantity:
  • Add to Wishlist
  • Add to Compare

Can be hand-controlled

You can manually adjust the positions of SliderPLUS (and HeadPLUS) while Slide Module v3 is attached. Instead of relying on a remote control, you can program your camera motions with just your hands! This gives an unprecedented speed to your workflow, and makes the whole process much more intuitive.

Macro-precise loopable motion

Slide Module v3 provides the necessary smoothness for macro shots and perfect steady speed control throughout the whole slide thanks to its mechanical design with backlash free gears.

Perfect for visual effects

Slide Module v3 can repeat any motion perfectly. Add some masking magic with your favorite video editing software and wow your audience in no time!

Ability to do tasty inclines

Thanks to the new design of SliderPLUS v5, you can now do inclines up to 22.5° (climb/descend) when paired with Slide Module v3 or the previous generation Slide Module v2. While doing inclines, the use of motorized heads is not recommended.

You asked we listened

The new Slide Module v3 now has a status screen for instant feedback as well as better wireless connection & longer range. We also added auto power off and power-saving modes for better power management. Slide Module is now quieter than ever and we didn't forget the highly requested ON/OFF button! :)

Connects wirelessly to HeadONE and HeadPLUS

Having a motorized head on a motorized SliderPLUS (Slide Module required) opens the door to amazing 2-, 3- or 4-axis camera motions which can be easily programmed and repeated. You can record never-before-seen, amazing motion time-lapses and visual effects shots with these combinations. The devices pair instantly in the background while using the same App or controller to control all devices together.

In the Box

  • edelkrone Slide Module v3 for SliderPLUS
  • connection screws for Slide Module
  • allen key
