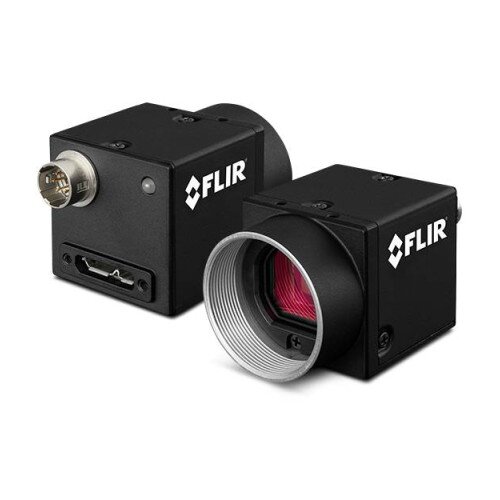

FLIR Blackfly S USB3 Machine Vision Camera
FLIR Blackfly S USB3 Machine Vision Camera Display Gallery Item 1

FLIR Blackfly S USB3 Machine Vision Camera - Shop Now and Save!

By: FLIR

Model: BFS-U3-16S2C-CS

Sku: VHSN0TPLKW

Be the first to review this product

Sign up for price alert

$425.99

Availability: In Stock In Stock

New

  • Resolution: 1440 × 1080
  • Frame Rate: 226
  • Megapixels: 1.6
  • Sensor: Sony IMX273
  • Sensor Type: CMOS
  • Sensor Format: 1/2.9"
  • Readout Method: Global shutter
  • Pixel Size: 3.45
  • Lens Mount: CS-mount
  • Digitization Bit Depth (ADC): 10-bit, 12-bit
  • Required Accessories: Lens, Cable, Host Adapter (USB 3.1 Gen 1)
  • Acquisition Modes: Continuous / Single Frame / Multi Frame
  • Exposure Range: 4 µs to 30 seconds
  • Flash Memory: 6 MB non-volatile memory
  • Frame Rate: 226
  • Gain Range: 0 db to 47 dB
  • Image Buffer: 240 MB
  • Image Processing: Color correction matri×, gamma, lookup table, saturation, and sharpness
  • Partial Image Modes: Pixel binning, decimation, ROI
  • User Sets: 2 user configuration sets for custom camera settings
  • Absolute Sensitivity Threshold (y): 4.91
  • Dynamic Range dB: 71.43
  • Power Consumption [Maximum]: 3 W
  • Power Requirements: 8-24 V via GPIO or 5 V via USB3
  • Quantum Efficiency Blue: 48.03 (460nm)
  • Quantum Efficiency Green: 59.32 (530nm)
  • Quantum Efficiency Red: 47.08 (625nm)
  • Saturation Capacity (e-): 10862
  • Auxiliary Output: 3.3 V, 120 mA maximum
  • Lens Mount: CS-mount
  • CPU: 3.1 GHz or equivalent CPU
  • Hard Drive: 200 MB hard drive space
  • Operating System: Windows or Linux (32–bit or 64–bit)
  • RAM: 2 GB RAM or more
  • Port: USB 3 Port
  • Compliance: CE, FCC, KCC, RoHS. The ECCN for this product is: EAR099.
  • Machine Vision Standard: USB3 Vision v1.0
  • Non-isolated I/O Ports: 1 bi-directional, 1 input
  • Operating Humidity: 20 to 80% (no condensation)
  • Operating Temperature: 0° to 50°C (ambient)
  • Storage Temperature: -30° to 60°C
Quantity:
  • Add to Wishlist
  • Add to Compare

The Blackfly S leverages the industry’s most advanced sensors in an ice-cube form factor. It is packed with powerful features enabling you to easily produce the exact images you need and accelerate your application development. This includes both automatic and precise manual control over image capture and on-camera pre-processing. The Blackfly S is available in GigE, USB3, cased, and board-level versions.

THE EXACT IMAGES YOU NEED

Choice of CMOS global shutter, polarization, and high-sensitivity BSI sensors. Color transformation tools ensure true- to-life color. Advanced auto-algorithms or precise manual control

DEVELOP ONCE, DEPLOY ANYWHERE

Support for a wide range of operating systems and host system hardware architectures. Easily switch to board level models for embedded systems. Simplified product iteration with consistent form factor across sensor sizes

ACCELERATE APPLICATION DEVELOPMENT

Compatible with third party software and hardware. Less code-writing required using powerful on-camera features. Quickly build custom applications with rich sample code and descriptive API logging.

In the Box

  • FLIR Blackfly S USB3 Machine Vision Camera
